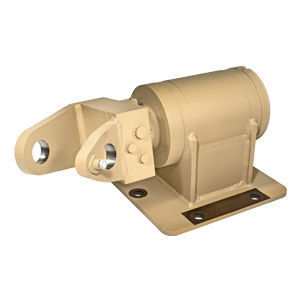

Oil rotary union QF-09003

for gas3-passagehydraulic

Description
3-passage rotary union designed for military hydraulic system applications. Features include a specialized design for high-vibration environments and a mounting configuration for direct integration into customer equipment.

Key information

• Industry: Defense
• Media Type(s): Gas, Oil
• Environment: Explosive
• Material: Carbon / Alloy Steel
• Maximum Pressure(s): 4,500 PSI [310 BAR]
• Maximum Speed: 10 RPM

Dimensions & passages

• Number of Passages: 3
• Passage Size(s): .500" [12.7 mm], .750" [19.1 mm]
• Through Bore: None
• Diameter: 14.567" [370 mm]
• Length: 24.880" [632 mm]

Related industry

• Defense

Technical specifications

• Design: 3-passage rotary union for military hydraulic systems
• Specialized design for high-vibration environments
• Mounting configuration for direct integration into customer equipment
• Materials: Carbon / Alloy Steel
• Media: Gas, Oil
• Environment rating: Explosive
• Max pressure: 4,500 PSI [310 BAR]
• Max speed: 10 RPM
• Passage sizes: .500" (12.7 mm); .750" (19.1 mm)
• Through bore: None
• Diameter: 14.567" (370 mm)
• Length: 24.880" (632 mm)
