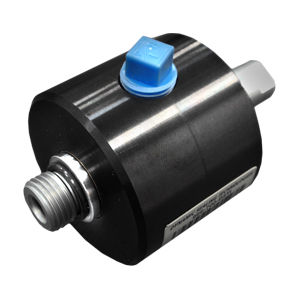

Vacuum rotary union NB-10821

for gassteelcarbon

Overview
Single-passage rotary union designed for carton production applications. Features a specialized low-torque configuration for high-speed vacuum operation. Information provided for system integration, compatibility checks and supplier selection.

Project Specifications

• Industry: Defense
• Media Type(s): Gas
• Environment: Cleanroom
• Material: Carbon / Alloy Steel
• Max. Pressure(s): Vacuum
• Max. Speed: 75 RPM
• Number of Passages: 1
• Passage Size(s): .250" [6.4 mm]
• Through Bore: None
• Diameter: 1.937" [49.2 mm]
• Length: 3.141" [79.8 mm]

Related Project Notes

• Related ranges and references observed on the page: Passage Size 0.250" - 0.374" [6.35 mm - 9.50 mm]
• Typical rotation speed range called out in related projects: 25 - 99 RPM
• Options referenced in related projects: Drive mechanism

Technical Specifications

• Industry: Defense
• Media: Gas
• Environment: Cleanroom
• Material: Carbon / Alloy Steel
• Maximum Pressure: Vacuum
• Maximum Speed: 75 RPM
• Number of Passages: 1
• Passage Size: .250" (6.4 mm)
• Through Bore: None
• Diameter: 1.937" (49.2 mm)
• Length: 3.141" (79.8 mm)
