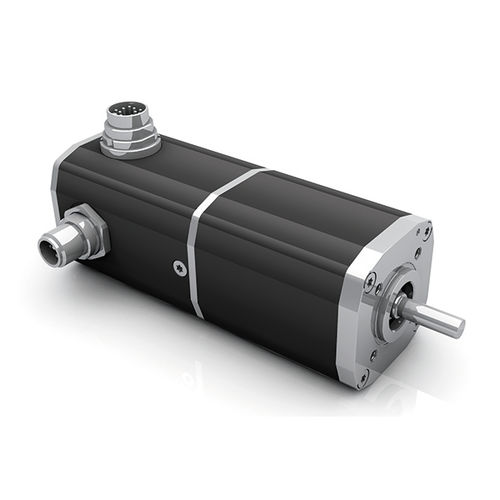

Brushless motor BG 45x15 CIDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 12 V
- Configuration
- with coder
- Other characteristics
- CANopen, with integrated controller
- Power
52.5 W, 55 W
(0.07 hp, 0.07 hp)- Torque
0.161 Nm, 0.168 Nm
(0.118748 ft.lb, 0.12391 ft.lb)- Rotational speed
3,110 rpm, 3,280 rpm
(19,540.7063 rad.min-1, 20,608.8478 rad.min-1)
Description
» With integrated motion controller for 4-quadrant drive with dynamic positioning
» By using the integrated motion controller and an integrated rotor-position encoder. even very complex motion profiles can be performed
» The integrated magnetic incremental encoder permits speed control down to 50 rpm
Nominal voltage - V:12
Nominal current - A:5.8
Nominal torque - Ncm:16.1
Nominal speed - rpm:3110
Friction torque at no load - Ncm:1.9
Maximum torque Ncm:49.7
No load speed - rpm:3855
Maximum output power W: - 86
Nominal power - W:52.5
Torque constant - Ncm/A:3.11
Rotor inertia gcm^2:24
Weight kg:0.5
