Brushless motor BG 95x80 dCore
DC24 V48 V

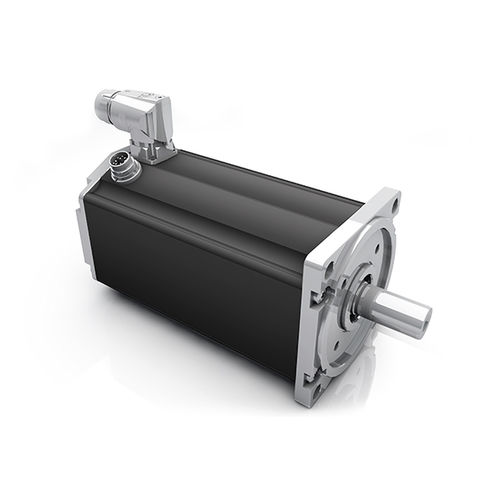

Brushless motor - BG 95x80 dCore - Dunkermotoren GmbH - DC / 24 V / 48 V
Brushless motor - BG 95x80 dCore - Dunkermotoren GmbH - DC / 24 V / 48 V
Add to favorites
Compare this product

Characteristics

Type
brushless, DC
Voltage
24 V, 48 V, 60 V
Configuration
with coder, permanent magnet, compact
Other characteristics
high-power, high-efficiency
Power

1,105 W, 1,109 W, 1,127 W
(1.5 hp, 1.51 hp, 1.53 hp)

Torque

2.74 Nm, 2.76 Nm, 2.9 Nm
(2.02092 ft.lb, 2.035672 ft.lb, 2.13893 ft.lb)

Rotational speed

3,709 rpm, 3,831 rpm, 3,851 rpm
(23,304.3343 rad.min-1, 24,070.8829 rad.min-1, 24,196.5466 rad.min-1)

Description

» Highly dynamic 3-phase EC motor with 8-pole neodymium magnets » High power density and compact design » The motor is standard with 2 connectors » Version with hall sensors for rotor position detection and With high resolution encoder (4x1.024 pulses per revolution) » On request, this motor can be manufactured with different voltage versions Nominal voltage - V:24 Nominal current - A:47.2 Nominal torque - Ncm:244 Nominal speed - rpm:3890 Friction torque at no load - Ncm:18 Peak stall torque Ncm - :3265 Maximum torque Ncm:1000 No load speed - rpm:4150 Maximum output power W:3000 Nominal power - W:1000 Torque constant - Ncm/A:6 Terminal resistance Ohm:0.013 Terminal inductance - mH:0.037 Rotor inertia gcm^2:1890 Weight kg:5.1
