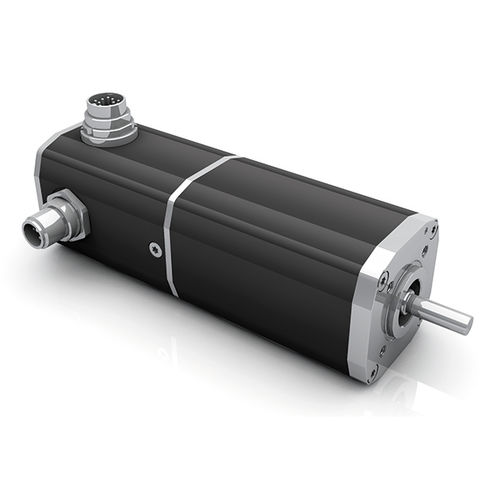

DC motor BG 45x30 PI
brushless24V12V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless
Voltage
24V, 12V
Configuration
modular
Other characteristics
high-efficiency, high-power, programmable
Torque

24.6 Nm, 25 Nm (18.144 ft.lb)

Power

82.4 W, 90.5 W (0.112 hp)

Rotational speed

3,190 rpm, 3,360 rpm (20,043.36 rad.min-1)

Description

» With integrated 4Q servo controller » PC-software easy to use for parameterization. Basic modes such as speed, position and torque are easy to parameterize (PI) » Freely programmable version (MI) available Nominal voltage - V:12 Nominal current - A:8.7 Nominal torque - Ncm:24.6 Nominal speed - rpm:3190 Friction torque at no load - Ncm:3.4 Maximum torqueNcm:55.2 No load speed - rpm:3728 Maximum output power W:135 Nominal power - W:82.4 Torque constant - Ncm/A:3.25 Rotor inertia gcm^2:44 Weight kg:0.62
