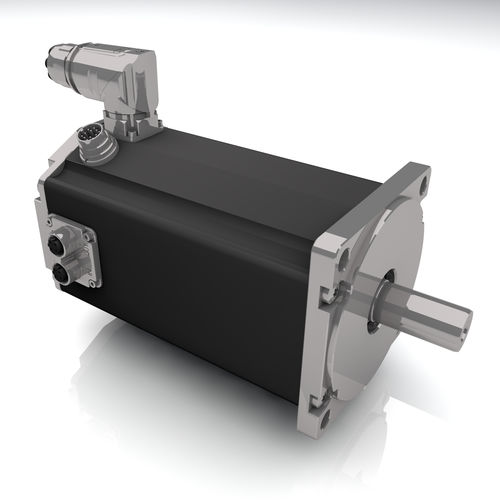

Brushless motor BG 95x40 dPro PN
DC24 V48 V

Brushless motor - BG 95x40 dPro PN - Dunkermotoren GmbH - DC / 24 V / 48 V
Brushless motor - BG 95x40 dPro PN - Dunkermotoren GmbH - DC / 24 V / 48 V
Add to favorites
Compare this product

Characteristics

Type
brushless, DC
Voltage
24 V, 48 V, 60 V
Other characteristics
servo-driven, ProfiNet
Torque

1.8 Nm, 1.9 Nm, 1.95 Nm
(1.327612 ft.lb, 1.401368 ft.lb, 1.438246 ft.lb)

Rotational speed

3,810 rpm, 3,910 rpm, 4,120 rpm
(23,938.936 rad.min-1, 24,567.2546 rad.min-1, 25,886.7235 rad.min-1)

Description

» With integrated 4Q servo controller » Certified PROFINET motor » Supports PROFIdrive application class 1 and 4 » IRT ready » Supports Profidrive » Control through quickstart commands possible » Comprehensive object dictionnary with all functions necessary to operate servo drives
