Biogas analyzer ProCeas®

natural gaswaterammonia

Product Overview
The transition from landfill gas or biogas to RNG requires precise measurement of methane and impurities to ensure long-term equipment protection, and optimize the process before injection into the natural gas grid. ProCeas® RNG / biogas analyzer delivers continuous, accurate, and multigas measurement, supporting critical stages of biogas pre-treatment, purification, and grid injection. Leveraging OFCEAS® laser technology, Proceas® delivers robust, ultra-stable and interference-free measurements with minimal drift, reducing the need for calibration. This results in optimized process control, reduced maintenance costs, and superior gas quality assurance.

By offering real-time data, Proceas® helps operators optimize methane quality and yield while mitigating corrosion risks, making it an invaluable tool for the renewable gas sector. The implementation of advanced continuous, real-time, multigas analyzers marks a significant advancement in efficient and environmentally responsible management, particularly in
upgrading methane gas produced from landfills and agriculture.

Benefits

• Long-lasting accuracy: On-line measurement, with no need for re-calibration or sensor replacement
• Reduced operational costs and complexity: Multi-point measurement, no zero gas or carrier gases required, easy to use with low maintenance
• Helps protecting infrastructure: Identifies contaminants in real-time enabling process adjustments that reduce maintenance costs for carbon beds, pipelines, turbines, etc.
• Fast decision-making: Real-time, accurate data supporting process control and gas quality assurance

Features

• Wide, dynamic measuring range, adapting to the process fluctuations
• ISO 2612:2023 compliance for NH3 measurement in biomethane and natural gas
• Multi-points measurements possible with a single device for optimized costs (multiplexing)
• Patented OFCEAS® + LPS® technologies for no drift, interference-free measurement and long-term accuracy
• Various enclosures to fit your installation and process conditions
• Ultra-fast response time for real-time multi-gas monitoring
• Certified for hazardous area: ATEX / IECEX or NEC 500/505 (Class I Div 1)
• Reliable measurement even in highly moisture-saturated biogas streams

Applications
Accurate multigas analysis of CH4, H2O, H2S, CO2, O2, NH3 in the gas stream. Other parameters or ranges on request.

Continuous measurement of critical contaminants in Renewable Natural Gas (RNG) applications such as landfill gas or biogas upgrading, biomethane purification, biomethane to grid, etc.

Technical data (excerpt)

• Technology: Patented OFCEAS® (Optical Feedback Cavity Enhanced Absorption Spectroscopy) combined with LPS® (Low Pressure Sampling)
• Power supply: 110 … 230 VAC, 50 … 60 Hz
• Power consumption: 150 VA max, 80 VA stabilized (per rack / wall mounted configuration)
• Ambient conditions
• Rack version: +10 … +35°C / +50 ... +95°F
• Wall mounted: up to -10 … +60°C / +14 ... +140°F
• Housing:

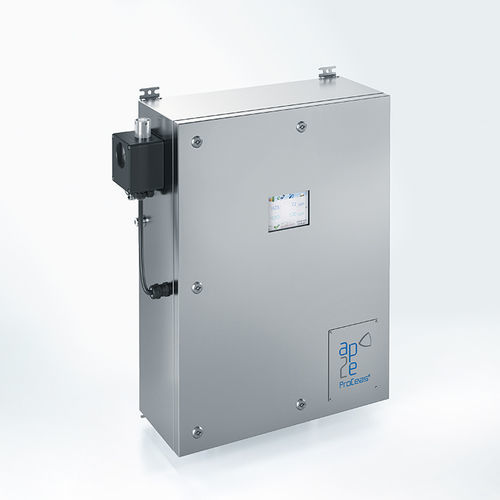

• Wall-mounted: Stainless Steel enclosure. Dimensions 800x600x250mm (without purge controller). Other on request
• 19'' 4U rack for cabinet integration
• Protection rating: 19'' 4U rack: IP32 ; Wall mounted: IP65
• Sampling line: Recomended - standard, not heated line. Optional traced line, temperature maintained at max 80 °C (26.6°F)
• Sampling Process connection: 1/4'' Stainless Steel
• Sampling probe: consisting of sample filter and sonic nozzle.
• Communication interfaces: USB ports, Modbus TCP/IP, RS232, RS485 (RJ45), VGA, Remote access via Ethernet, Analog I/O optional
