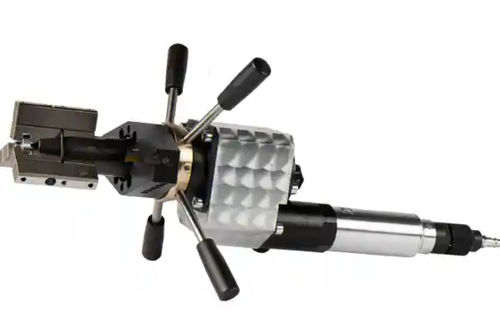

Pipe beveling machine MF4i

weld preparationfor thick piecesvariable-speed

Working Range ID-OD: 2,28 - 8,63" (58 - 219,1 mm) Pipe wall thickness: max. 25 mm Spark-free and low noise High repeatability Due to an extremely compact design, tubes can be beveled perfectly even in confined spaces. Working range ID-OD - 2,28" - 8,63" (58 - 219,1 mm) Clamping range ID-ID - 2,28" - 8,54" (58 - 217 mm) Max. wall-thickness - 0,98" (25 mm) Feed - 1,18" (30 mm) Weight with pneumatic motor - 17,9 kg Weight with electric motor - 21,1 kg Weld prep - facing, V & J-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87 psi) Air consumption - 1,92 m³/min (70,4 cfm) Air hose connection - 3/8" Features - speed control ELBOW BEVELING Special inserts for internal clamping pipe beveling machine for elbow beveling VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
