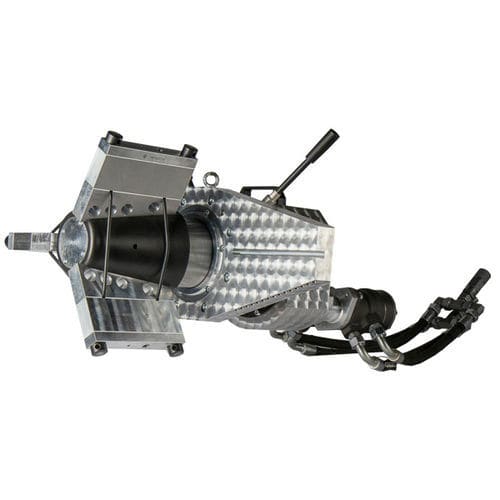

Pneumatic beveling machine MF6i-50

hydraulichand-heldpipe

Working Range ID-OD: 11,02 - 28" (280-711 mm) Pipe wall thickness: max. 32 mm Spark-free and low noise High repeatability The MF6i-50 pipe beveling machine is the largest of our pipe beveling machines and can work on pipes with a maximum outer diameter of 711 mm and a maximum wall thickness of 36 mm. A powerful motor, a long service life and first-class tools optimise your work process. Working range ID-OD - 11,02" - 28" (280 - 711 mm) Clamping range ID-ID - 11,02" - 27,56" (280 - 700 mm) Max. wall-thickness - 1,41" (36 mm) Feed - 1,97" (50 mm) Weight with pneumatic motor - 85 kg Weight with hydraulic motor - 105 kg Weld prep - facing, V & J-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87 psi) Air consumption - 2,88 m³/min (101,7 cfm) Air hose connection - 1/4" Features - speed control Air pressure - 105 bar (1.523 psi) Oil flow - 50 l/min BIGGEST PIPE BEVELING RANGE The pipe beveling machine MF6i-5 is the largest of our pipe beveling machines. VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
