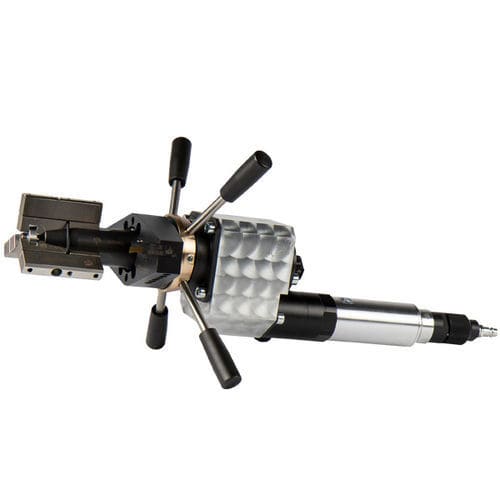

Pipe beveling machine MF3i

weld preparationfor thick piecesvariable-speed

Working Range ID-OD: 1,57 - 6,63" (40 - 168,3 mm) Clamping Range ID-ID: 1,57 - 5,98" (40 - 152 mm) Pipe wall thickness: max. 25 mm Spark-free and low noise High repeatability With the MF3i pipe beveling machine, pipes up to OD 168,3 mm can be processed for weld edge preparation. The machine can be equipped with either a pneumatic or electric working motor. Thanks to its low weight of only 10 kg, this machine can be operated by only one person. Working range ID-OD - 1,57" - 6,63" (40 - 168,3 mm) Clamping range OD-OD - 1,57" - 5,98" (40 - 152 mm) Max. wall-thickness - 0,98" (25 mm) Feed - 0,590" (15 mm) Weight with pneumatic motor - 10,3 kg Weight with electric motor - 11,5 kg Weld prep - facing, V & J-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87 psi) Air consumption - 0,96 m³/min (33,9 cfm) Air hose connection - 1/4" Features - speed control ELBOW BEVELING Special inserts for internal clamping pipe beveling machine for elbow beveling VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
