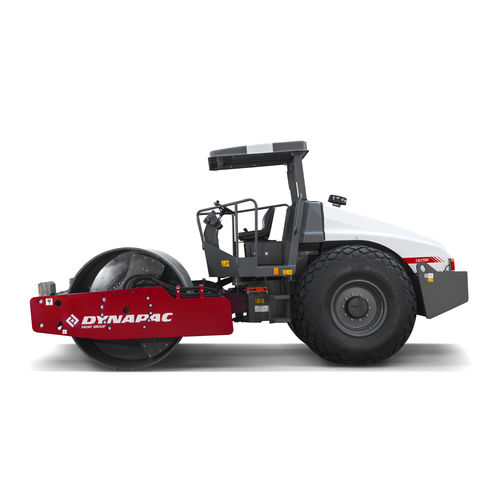

Single-cylinder road roller CA270D

vibrating

CA270D is a typical utility machine, designed for long working days in tough applications. It is utilized for compaction of most types of soil. Typical applications are road building, airfields, dams, harbors and industrial sites. Module mass (front/rear) - 7000/ 4900 kg Traction Speed range (Dual/TC/AS) - 0-10 km/h Tyre size (8 ply) - 23,1 x 26 Max. theoretical gradeability - 57 % Vertical oscillation - ±9° Compaction Static linear load - 33 kg/cm Nominal amplitude, high - 1.7 mm Nominal amplitude, low - 0.8 mm Nominal amplitude (high/low) - 1.7/ 0.8 mm Vibration frequency, at high amplitude - 33 Hz Vibration frequency, at low amplitude - 33 Hz Vibration frequency (high/low amplitude) - 33/ 33 Hz Centrifugal force, at high amplitude - 248 kN Centrifugal force, at low amplitude - 121 kN Centrifugal force (high/low amplitude) - 248/ 121 kN Engine Manufacturer/Model - Cummins 4BT 3.9 102C Type - Water cooled turbo Diesel Fuel tank capacity - 250 l Alternative Engine Manufacturer/Model - Deutz 4BT 3.9-C Type - Water cooled turbo Diesel Hydraulic system Driving - Axial piston pump with variable displacement. Axial piston motor with variable (dual speed) or constant (single speed) displacement. Radial piston motor with constant displacement. Vibration - Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering - Gear pump with constant displacement. Parking/ Emergency brake - Failsafe multidisc brake in rear axle & Drum Radial piston motor Service brake - Hydrostatic in forward and reverse lever.
