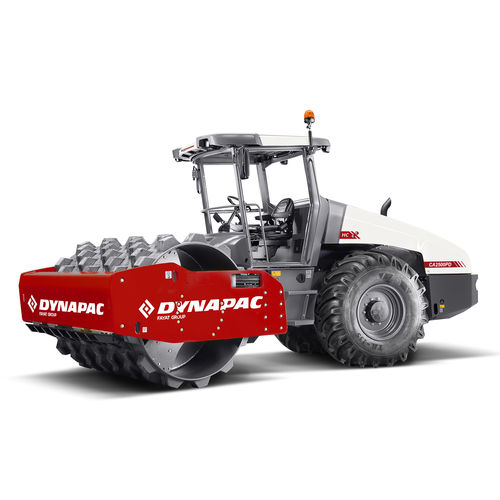

Vibratory road roller CA2500PD HC

single-cylinder

Dyn@Link A tool to monitor and control their machine fleet efficiently and conveniently. Eco mode Big fuel savings with ECO! Stage IV / TIER 4f Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings. Vario speed Vario speed details here Module mass (front/rear) - 6600/ 4700 kg Traction Speed range - 0 - 12 km/h Tyre size (8 ply) - 23.1 x 26 TR Theor. gradeability, forward - 55 % Theor. gradeability, reverse - 55 % Vertical oscillation - ±9° Number of pads - 130 Pad area - 146 cm2 Pad height - 102 mm Compaction Static linear load - 31 kg/cm Nominal amplitude (high/low) - 2.0 mm/ 1.1 mm Vibration frequency (high/low amplitude) SEISMIC available (values for manual mode) - 30 Hz / 30 Hz Centrifugal force (high/low amplitude) - 260 kN/ 150 kN Engine Manufacturer/Model - Cummins QSF3.8 (IV/4final) Type - Water cooled turbo Diesel Fuel tank capacity - 255 l DEF tank capacity - 20 l Alternative Engine Manufacturer/Model - Cummins F3.8 (V) Type - Water cooled turbo Diesel Hydraulic system Driving - Hydrostatic Vibration - Hydrostatic Steering - Hydrostatic Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in drum gear box and in rear axle.
