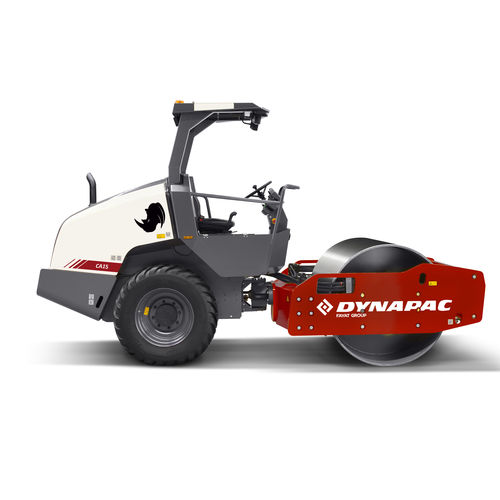

Single-cylinder road roller CA15D

vibrating

Operating mass (incl. ROPS) - kg Module mass (front/rear) - 3400 / 3100 kg Traction Speed range - 0-10 km/h Tyre size (16 ply) - 400/60-22.5 flotation Max. theoretical gradeability - 56 % Vertical oscillation - ±9° Compaction Static linear load - 20 kg/cm Nominal amplitude (high/low) - 1,7/0,8 mm Vibration frequency (high/low amplitude) - 32/32 Hz Centrifugal force (high/low amplitude) - 114/55 kN Engine Manufacturer/Model - Kubota V3307-DI Stage IIIA/Tier 3 Type - Water cooled turbo Diesel Fuel tank capacity - 117 l Electrical system - 12 V Hydraulic system Driving - Hydrostatic with a traction pump supplying two parallel connected motors, one on rear axle and one on drum. Vibration - Hydrostatic with a vibration pump supplying a motor connected to the eccentric axle generating the vibrations. Steering - Mechanical-hydraulic with steering valve supplying the steering cylinder. Steering angle is proportional to steering wheel. Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in rear axle and front drum motor.
