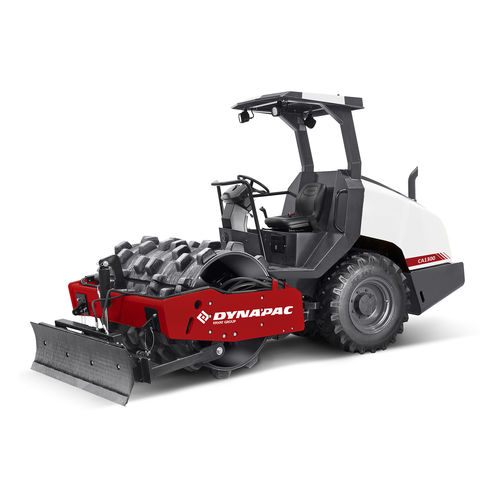

Single-cylinder road roller CA1300PDB

vibrating

Module mass (front/rear) - 2250 kg/ 2750 kg Traction Speed range (Dual/TC/AS) - 0 - 6 km/h Tyre size (10 ply) - 12.5-20 Max. theoretical gradeability - 52 % Vertical oscillation - ±9° Number of pads - 72 Pad area - 53 cm2 Pad height - 76 mm Compaction Static linear load - 13 kg/cm Nominal amplitude - 1.5 mm Vibration frequency - 35 Hz Centrifugal force - 89 kN Frequency - ECO: 30 Hz Engine Manufacturer/Model - Kubota V 3307 CR-TE4 (Stage IIIB/Tier 4f) Type - Water cooled turbo Diesel Fuel tank capacity - 117 l Alternative Engine Manufacturer/Model - Kubota V 3307 CR-TE5 (Stage V) Type - Water cooled turbo Diesel Fuel tank capacity - 117 l Hydraulic system Driving - Axial piston pump with variable displacement. Axial piston motor with constant displacement. Radial piston motor with constant displacement. Vibration - Gear pump/ motor with constant displacement. Steering - Gear pump with constant displacem. Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in rear axle and front drum motor.
