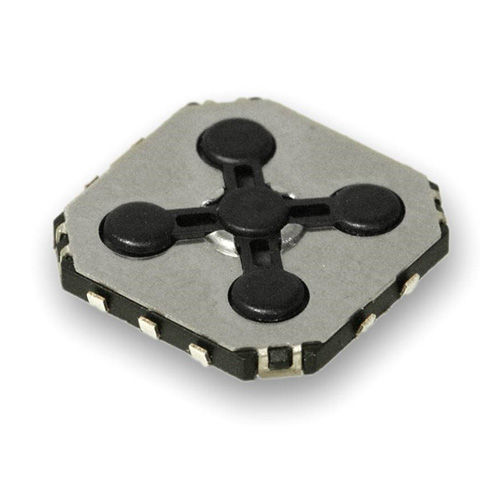

Touch switch JS1300 series

multipolenavigationelectromechanical

The JS1300 Series 5-position navigation switch is loaded with features, including north, south, east, west, and center actuation, a very low profile, and sleek, surface mount design. This navigation switch also has a long life expectancy of up to 200,000 cycles and operates in temperatures ranging from -20°C to 70°C The JS1300 Series 5-position navigation switch is electrically rated for 20mA of 12VDC current and is great for use in consumer applications where user interface is needed, such as: • GPS tracking systems • Handheld consumer devices • Wireless communications • Navigation FEATURES • 5-position navigation switch • Long life expectancy of up to 200,000 cycles • 9.8mm x 9.8mm base; low profile of 1.55mm • Surface mount design
