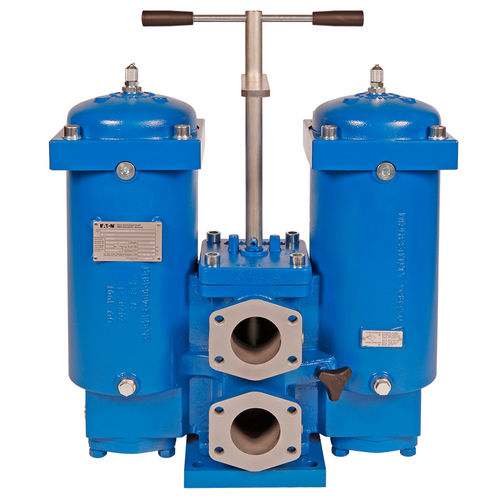

Hydraulic filter DU series
cartridgedouble-basketpressure

hydraulic filter
hydraulic filter
hydraulic filter
Add to favorites
Compare this product


Characteristics

Designed for
hydraulic
Filtration element
cartridge, double-basket
Filtration method
pressure
Applications
safety
Material
steel
Other characteristics
low pressure, duplex, in-line
Operating pressure

63 bar
(913.738 psi)

Fluid temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Description

Eaton´s low pressure duplex filters of the DU series are suitable for operating pressure up to 464 psi Pressure peaks can be absorbed with a sufficient margin of safety. A three-way-change-over valve which is, integrated in the middle of the housing, makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation. Core features Three-way-changeover valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life Applications Suitable for all petroleum based fluids HW-emulsions Most synthetic hydraulic fluids and lubrication oils.
