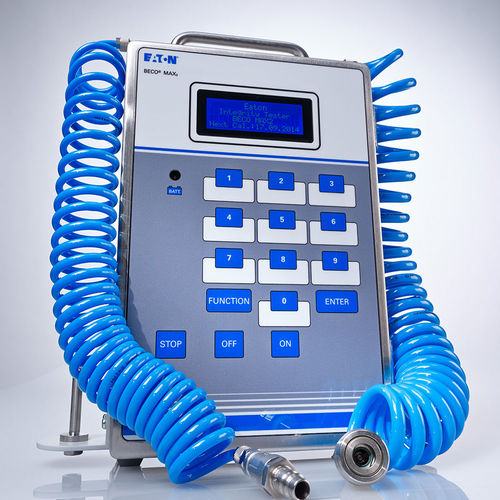

Pressure measuring instrument BECO MAX2

volumefor cablesfor pipes

The fully automatic integrity test unit BECO MAX2 is designed for the regular testing of membrane filter cartridges and determines if a filter meets microbial removal specifications and is correctly installed. The testing result indicates an accurate indication of the membrane filter cartridge's integrity prior to filtration. It features an easy-to-use keypad and backlit four-line display in a stainless steel housing. BECO MAX2 provides integrity testing for unparalleled accuracy and decision-making. An easy-to-use keypad and backlit 4-line display automatically tests the integrity of membrane filter cartridges. The water-resistant, stainless steel housing protects the device from splashes of water and delivers long-lasting battery life. The spiral coiled tubes allow the user to easily connect the device in hard to reach places. Save and print up to 10 programs and 40 performance data. Input values, single input: - Testing pressure - Stabilizing time - Testing time - Max. admissible pressure drop - Medium- and housing data The testing device is capable of measuring membrane cartridges in small-volume housings (< 0.9 gal (< 3.5 l)) as well as large-volume housings (0.9 – 40 gal/ 3.5 – 150 l).
