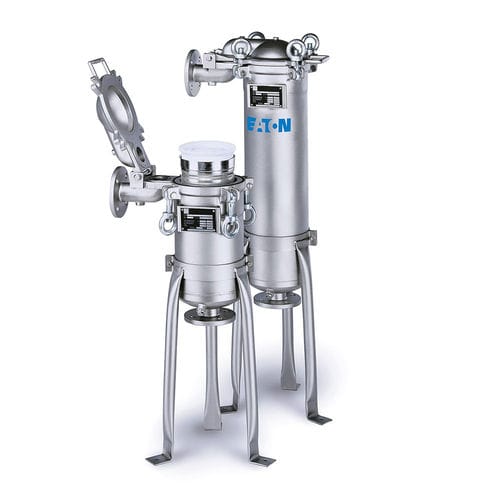

Single-bag filter housing TOPLINE

for liquidsstainless steelhigh-performance

Eaton's TOPLINE single bag filter stainless steel housing is at the top of its class – from its high-performance design to its investment-cast components. The top inlet design requires less headroom and directs liquid flow through the cover which improves sealing, reduces product loss and makes filter bag change-outs cleaner. Core features Top inlet with liquid flow through cover Sizes for #01 single or #02 double-length filter bags Unique two-weld design Cover positively seals filter bag Buna N seals standard Stainless steel basket 2" RF 150-lb ANSI flanged connections Maximum operating pressure of 150 psi Maximum operating temperature of 400F with Viton seals Domed cover with swing bolts Mounting legs to adjust vessel height ASME code stamp Type 316 stainless steel or carbon steel construction
