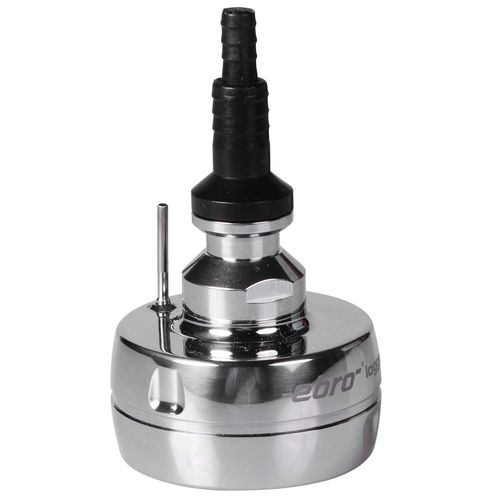

Pressure data logger EBI 12-TP237

wirelessPt1000without display

The data logger for routine and batch control in the WD and steam sterilizer. The logger is characterized by high accuracy and the hose connection for the pressure sensor. This data logger is part of the emergency set which we recommend for every reprocessing unit for medical devices in order to be able to continue to collect and store independent measurement data during reprocessing even in the event of a network failure. Benefits: • robust data logger • wireless measurement • Realtime data transmission • sterilizable data logger Applications: • Validierlogger für die Messung im Dampfsterilisator, RDG, RDG-E Technical Data Weight approx. 120 g Accuracy ±20 mbar Protection class IP68 Dimensions ø 48 mm x 32 mm - Needle length 20 mm Resolution 0.01 °C Certificate Factory Calibration: 0 °C, +60 °C and +134 °C 100 mbar and 3,100 mbar at +25 °C and 3,100 mbar at +134 °C Measured variables Temperature, pressure Intervall 250 ms...24 h Battery 3.6 V Battery battery exchangeable Measuring range 0 °C...+140 °C. 1 mbar...4000 mbar Storage temperature -20 °C...+70 °C
