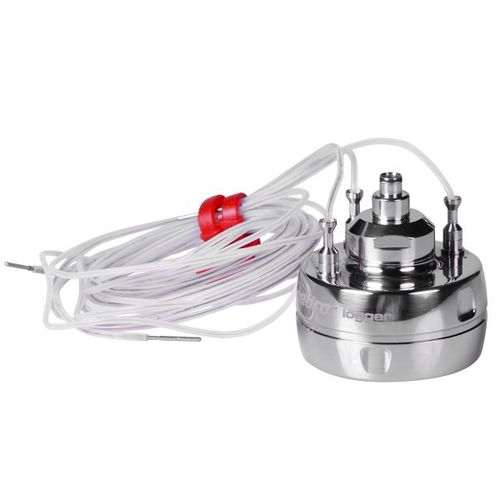

Temperature data-logger EBI 12-TP453

pressurewirelessPt1000

Validation logger for benchtop autoclaves Product information Validation logger for thermal testing of processes with steam sterilizers. The logger is characterized by its highly flexible cable sensors, which enable precise positioning. With its 3 temperature sensors and the pressure sensor it is ideally suited for measurement in small sterilizers. The very thin temperature sensors with a diameter of 1.2 mm at the sensor tip enable a very fast response time. When using the logger in the washer-disinfector, it is strongly recommended to fix the sensors by means of silicone cable ties. Benefits: • highly flexible cable probes • high accuracy • Realtime data transmission • fast response time • sterilizable data logger Applications: Validation logger for Measurement in the steam sterilizer Technical Data Weight approx. 120 g Accuracy ±0,1 °C (0 °C ... +120 °C) ±0,05 °C (+120 °C ... +140 °C) ±0,1 °C (+140 °C ... +150 °C) ±15 mbar (1 mbar ... 50 mbar), ±10 mbar (50 mbar … 150 mbar), ±10 mbar (2.050 mbar … 2.250 mbar), ±10 mbar (3.000 mbar … 3.250 mbar), ± 15 mbar (3.250 mbar ... 3.500 mbar), ± 0,5 % FS (3.500 mbar ... 4.000 mbar) Protection class IP68 Dimensions ø 48 mm x 32 mm - Needle length 1.200 mm Resolution 0,01 °C 1 mbar Certificate Factory calibration certificate Measured variables Temperature, pressure Intervall 250 ms ... 24 h Battery 3.6 V lithium battery exchangeable Measuring range Temperature 0 °C … +150 °C Pressure 1 … 4.000 mbar Storage temperature -20 °C ... +70 °C
