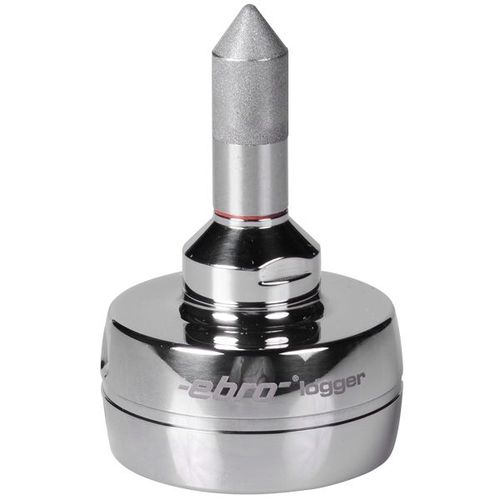

Relative humidity data logger EBI 12-TH100-EX

wirelessPt1000without display

This data logger is for measuring the relative humidity during processing with ethylene oxide. The logger is suitable for use in explosive gas atmospheres in zones 0 / 1/ 2 in accordance with Directive 2014/24 EU (ATEX Directive). For additional information regarding gas and temperature classes, please refer to the data sheet. Benefits: high accuracy robust data logger Applications: Sterilization with ethylene oxide gas (EO) Technical Data Weight aprox. 120 g Accuracy ±2% (10%rH to 90%rH at 25°C non condensate), remaining range ±7% Protection class IP52 Dimensions ø 48 mm x 70 mm Resolution 0,01 °C 0,1 % rF Certificate Factory Calibration: 0 °C and +60 °C 32.8 %rF, 52.9 %rF and 75.4 %rF at 25 °C Measured variables Temperature, humidity Battery 3.6 V lithium battery exchangeable Measuring range Temperature: -20 °C ... +85 °C Humidity: 0 % rF… 100 % rF Storage temperature -20 °C ... +70 °C
