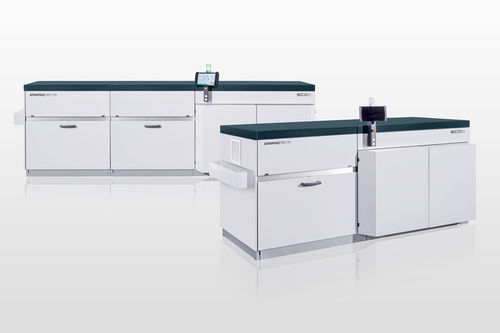

Thermal CtP Pro T 100

external drum

The high-quality Advantage Pro T platesetters give any newspaper printer a competitive edge – from local newspaper printers to high volume publishers. Combined with chem-free or process-free ECO3 thermal plates, newspapers can choose from different plate-loading mechanisms, including two trolleys or dual pallet loading with up to 6,000 plates. Fulfill your throughput requirements with speeds up to 300 plates per hour. The design of Advantage Pro T is made future-proof by incorporating remote diagnostics, app-based WLAN operation and Industry 4.0 capabilities. Specifications Imaging technology Thermal external drum with high quality optics Laser type Thermal laser 830 nm Laser heads 1 to 4 heads, depending on throughput requirements Resolution 1,270 dpi Single format Speed From 100 to 300 in speed and productivity Plate loading From Trolley to Pallet Loader; pallet loading from 1 Bay to a 2 Bay Multiformat loading system Supported plate types 830 nm thermal CTP plates (90-150 μJ/cm2) Plate capacity Trolley: 1,000 single or 500 panorama plates/bay Pallet: 3,000 single or 1,500 panorama plates/bay Registration system Electronic 3 point register Plates per cycle 2 single plates per imaging cycle Configuration Can be configured with left or right loading Paper detection Paper recognition sensor with Auto-Stop Dual format Speed From 100 to 300 in speed and productivity Plate loading From Trolley to Pallet Loader Supported plate types 830 nm thermal CTP plates (90-150 μJ/cm2)
