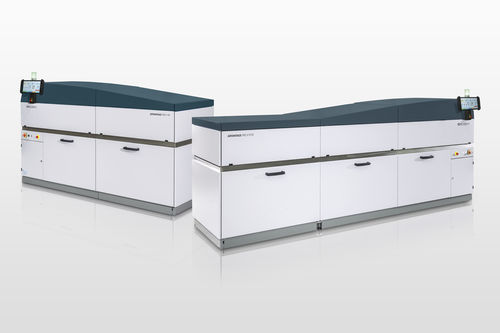

UV CtP Pro V 100

The high-quality violet Advantage Pro V platesetters give any newspaper printer a competitive edge – from local newspaper printers to high-volume publishers. Choose from different plate-loading mechanisms, including a trolley or pallet loading with up to 6,000 plates online. Add an optional panorama cassette, if needed. Fulfill your throughput requirements with speeds up to 400 plates per hour. The design of Advantage Pro V is made future-proof by incorporating remote diagnostics, app-based WLAN operation and Industry 4.0 capabilities. The platesetter can image both conventional and chemistry-free plates. Imaging technology Violet flatbed with high quality optics Laser type - Violet laser diode 405 nm Laser lifetime Approx. 10,000 exposing hours Laser heads 1 in a dust protected housing Resolution - 1,016 – 1,270 dpi - with HR option up to 2,540 dpi at full scanner speed with TIFF-Stream From Trolley to Pallet Loader; pallet loading from 1 Bay to a 2 Bay Multiformat loading system Single format Supported plate types 405 nm CTP plates (30-150μJ/cm2) Plate capacity Trolley: 1,000 single or 500 panorama plates/bay Pallet: 3,000 single or 1,500 panorama plates/bay Exposure size Max. 610 x 940 mm (24.0“ x 37.00“) Registration system Electronic 3 point register Plates per cycle 1 plate per imaging cycle Configuration Can be configured with left or right loading Panorama cassette Opt. 30 panorama plates max 640 x 750mm Dual format Supported plate types 405 nm CTP plates (30-150μJ/cm2) Plate capacity Trolley: 2 × 1,000 single or 500 panorama plates/bay Pallet: 2 × 3,000 single or 1,500 panorama plates/bay Exposure size Max. 610 x 940 mm (24.0“ x 37.00“)
