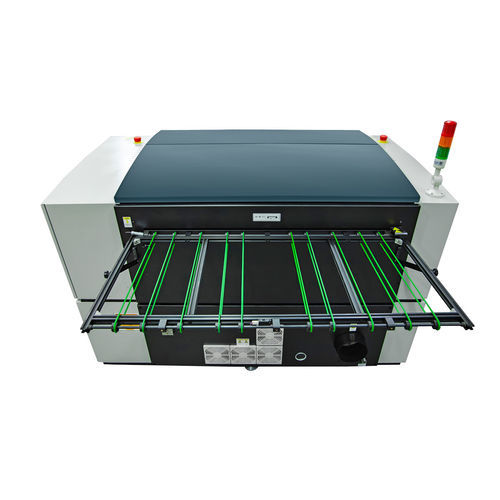

Thermal CtP Avalon NP 4-up

external drummanual

The Avalon C4-30 NP thermal computer-to-plate system combines a compact footprint with outstanding imaging capabilities. It handles plates up to 925 x 675 mm. A press punch, autoloader and bridge to a processor or clean-out unit can be added to automate the entire plate-making process. Up to 64 plates per hour can be imaged. ECO3 can offer the engine as part of a full system solution, including offset plates, Arkitex workflow software and support contracts. Reliable high-quality plate imaging Featuring state-of-the-art multi-channel fiber-coupled thermal lasers, the Avalon C4-30 delivers consistent and superior imaging quality High plate productivity With an imaging speed of up to 64 plates per hour, the Avalon C4-30 NP ensures efficient production for newspaper applications. Efficient space utilization The Avalon E4-30 NP occupies less than 4 m² in your prepress area, thanks to its compact footprint. Multi-channel fiber-coupled thermal laser-diode technology The Avalon C4-30 NP utilizes multi-channel fiber-coupled thermal laser-diode technology, providing precise dot reproduction on the plate. The XXT version can output up to 64 plates per hour thanks to its 96 laser diodes. Process automation options An autoloader significantly improves plate loading efficiency. Activate the inline press punch before loading the plate onto the external drum. After imaging, plates are seamlessly guided into an online processor or clean-out unit. Manual plate loading with standard pre-staging Empower your operators with flexibility. Load a plate while imaging another, leaving the unit unattended.
