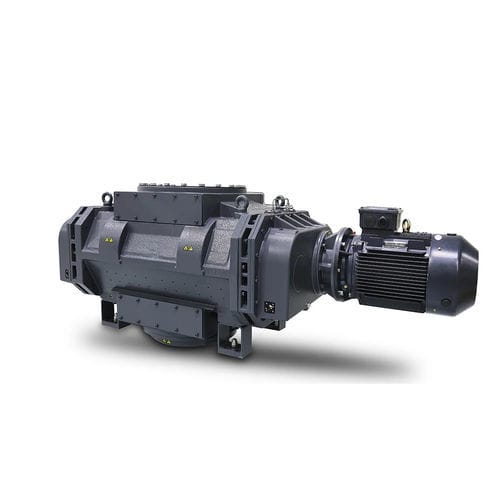

Roots vacuum pump GMB40K lubricatedsingle-stagefor the chemical industry
Add to favorites
Compare this product
Characteristics
- Technology
- Roots
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- for the chemical industry, chemical process
- Other characteristics
- ATEX, large, mechanical booster, modular
- Ultimate vacuum
0.01 mbar
(0 psi)- Flow rate
6,500 m³/h, 31,000 m³/h
(229,545.33 ft³/h, 1,094,754.67 ft³/h)- Power
30 kW
(40.79 hp)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)- Noise level
80 dB
- Weight
2,260 kg
(4,982.45 lb)
Description
Flexible with multiple systemisation options available
The GMB40K is scalable with multiple backing configurations available. Built to global standards IEC and NEMA flange compatibility. ATEX options are also available for use Hazardous or chemical applications.
High capacity pump with a low footprint
Innovative modular rotor technology ensures high performance on the smallest footprint and weight. This ensures the highest degree of flexibility when designing large vacuum systems.
Designed for harsh applications
The GMB40K is a robust pump designed for harsh applications. The innovative modular rotor design is of high strength alloy-steel shafts with lightweight rotor lobes. This patented construction gives maximum displacement on an industry leading footprint.
