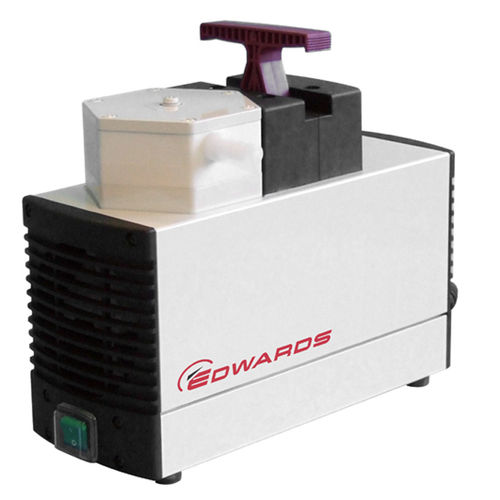

Diaphragm vacuum pump D-LAB series
oil-freesingle-stagefor laboratory

Diaphragm vacuum pump - D-LAB series - EDWARDS - oil-free / single-stage / for laboratory
Diaphragm vacuum pump - D-LAB series - EDWARDS - oil-free / single-stage / for laboratory
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Lubrication
oil-free
Number of stages
single-stage
Applications
for laboratory
Other characteristics
compact, chemical-resistant
Ultimate vacuum

8 mbar, 100 mbar
(0.12 psi, 1.45 psi)

Flow rate

0.6 m³/h, 1.2 m³/h, 2 m³/h
(21.19 ft³/h, 42.38 ft³/h, 70.63 ft³/h)

Length

Min.: 305 mm
(12 in)

Max.: 403 mm
(16 in)

Width

Min.: 140 mm
(5.51 in)

Max.: 169 mm
(6.65 in)

Height

Min.: 182 mm
(7.17 in)

Max.: 222 mm
(8.74 in)

Weight

Min.: 5.9 kg
(13.01 lb)

Max.: 12.6 kg
(27.78 lb)

Description

membrane pumps with their chemically resistant Teflon® heads, diaphragms and Kalrez® valves, offer the chemical or pharmaceutical laboratory user a wide range of choice. The one head, 100 mbar ultimate vacuum pumps are suitable for use with drying equipment or for replacing water-jet pumps, whilst the two head, 8 mbar ultimate vacuum pumps are suitable for rotary evaporation, gas transfer and a wide range of medium vacuum applications. Feature and Benefits in a nutshell 100% lubricant free, maintenance free, and quiet Six different pumping capacities and modular expansion - the D-Lab can be optimised for any application All parts of the pump head on contact with gases pumped are resistant against aggressive substances (PTFE, FFKM, PVDF)
