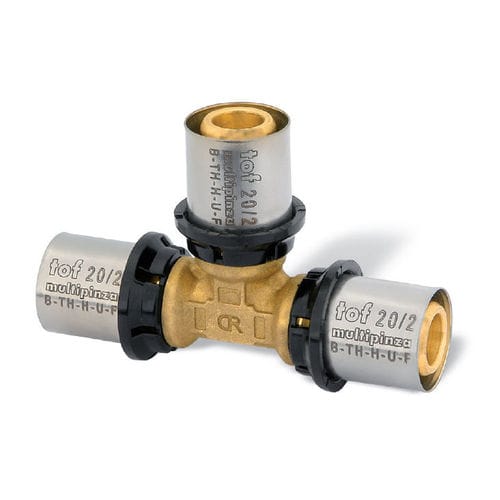

Hydraulic fitting TOF MULTIPINZA series
crimpTbrass

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
crimp
Configuration
T
Material
brass
Other characteristics
fire protection
Diameter

Min.: 16 mm
(0.63 in)

Max.: 63 mm
(2.48 in)

Operating pressure

10 bar
(145.04 psi)

Description

TOF MULTIPINZA: TOF Multipinza is a dezincification resistant brass fitting (DZR) used for connection of multilayer pipes. Pipes and fittings are assembled by means of electro-hydraulic tools provided with specially shaped jaws. The jaws, when applied correctly to the outer, AISI304 stainless steel bushing, leave a permanent deformation to guarantee tight jointing. The pipe fittings are designed to be used with 6 different tools shapes according to sizes and types shown in the table below: OPERATING LIMITS: • Maximum operating temperature 120°C (-20°C + 120°C: please check pipe maximum temperatures and ensure that pipe and fluid are compatible) • Maximum working pressure 10bar APPLICATION FIELDS: Using reliable top quality materials, TOF Multipinza is employed in water distribution systems on drinking water applications. It is also suitable for use on high and low temperature heating systems, air conditioning plants, fire protection systems and compressed air systems. Please check the compatibility of materials and fluids. TECHNICAL FEATURES: • Designed and tested for use with 6 different pincers’ profiles: U, H, TH, F, B, C (see table E) • Visual inspection of correct pipe position through special openings on the plastic bush-holder
