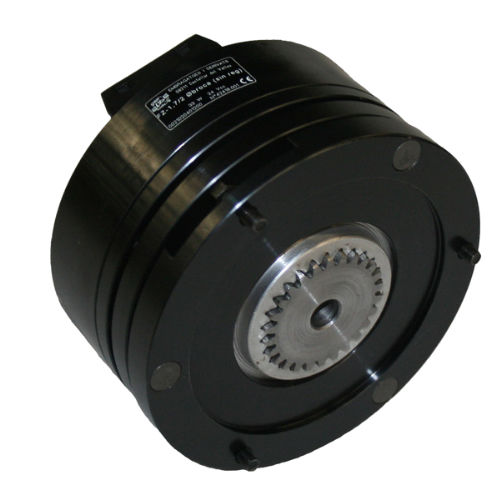

Spring activated brake FZ

frictionmultiple-discelectromagnetic release

The electromagnetic spring brake FZ is a unit for work on horizontal axes, with a high degree of reliability, good heat dissipation, fast response speed and minimal residual torque. Without current, it remains braked (by springs). With current released. Consult for work on vertical axes. The unit is provided with an “emergency manual unlocking”, in cases where it is necessary to cancel it, without the action of the electromagnet. A single version is built, for dry work. As an option and on request, the brake can be served: With torque regulation, which allows to obtain control over braking. With manual release by lever. For cases where this action must be performed frequently. With protection cap. For cases in which the unit must work in aggressive environments, dust, water, etc. The normalized voltage is 24 V.C. The electromagnetic spring brake FZ can be used for different types of machinery, such as: Textile sector Speed Doors Construction Industry Cleaning of buildings and facades
