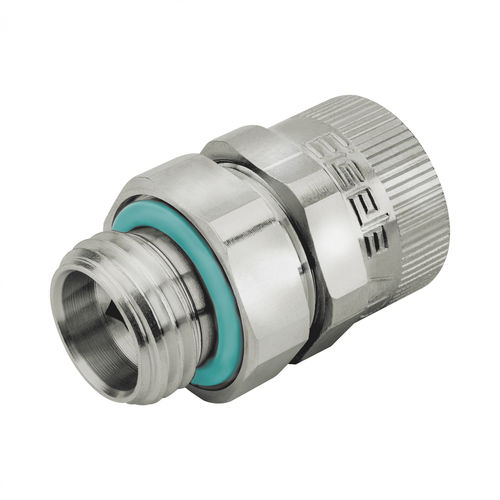

Pneumatic fitting VT4528
screw-instainless steelcooling

pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
screw-in
Material
stainless steel
Other characteristics
cooling
Operating pressure

Min.: -0.95 bar
(-13.78 psi)

Max.: 16 bar
(232.06 psi)

Description

The push-in fittings of the Eisele INOXLINE are made of high quality non-corrosive and acid-resistant stainless steel. All parts are machined entirely from solid material and are particularly well-suited for hygiene-sensitive applications in food and pharmaceutical environments, as well as processing technology. Based on the design of our time-proven standard components, the materials and surface treatment of Eisele INOXLINE stainless steel connectors makes them thoroughly easy to clean and extremely corrosion resistant. It includes push-in fittings with one or two seals, screw-in fittings and accessories. The INOXLINE also includes stainless steel fittings designed with minimal dead zones or joints to prevent the accumulation of product residue. Another impressive feature of the stainless steel connectors is that they are designed for easy exterior cleaning. The quality workmanship and the low manufacturing tolerances of our stainless steel connectors are particularly noticeable in the INOXLINE products. - Whitworth pipe thread DIN ISO 228 - Chambered O-ring - Seals FKM - Material: 1.4404 - Temperature range: -4 to 248 °F (-20 to +120 °C) - Working pressure range: -14 to 232 psi (-0.95 to 16 bar)
