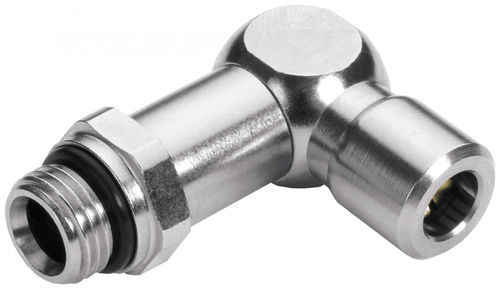

Pneumatic fitting 682
screw-inelbownickel-plated brass

pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
screw-in
Configuration
elbow
Material
nickel-plated brass
Other characteristics
swivel, extended
Operating pressure

Min.: -14 psi

Max.: 232 psi

Description

- Whitworth pipe thread- Chambered O-ring - Sealing NBR - Material brass nickel-plated - Temperature range -4 to 176 °F (-20 to +80 °C) - Working pressure range -14 to 232 psi (-0.95 to 16 bar) - Swiveling, but not designed for steady motion of the tube
