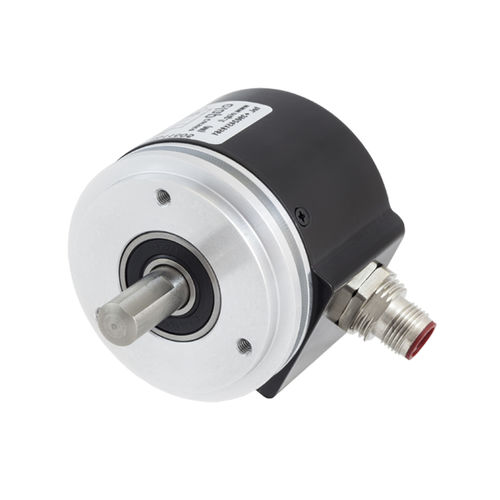

Absolute rotary encoder MEM-Bus IO-Link

multi-turnFieldbuswith IO-Link interface

The absolute encoders MEM-Bus with IO-Link interface, seamlessly integrate into network architectures based on this protocol. IO-Link is a point-to-point communication protocol that enables simplified communication between sensors and Ethernet or fieldbus networks on production lines. It is compatible with most industrial fieldbuses, making it easy to integrate into existing systems. IO-Link encoders are easy to install thanks to the reduced cabling required by the protocol and the auto-parameterization function of network devices. MEM-Bus encoders offer all the typical features of smart sensors, such as the diagnostic function signalling any errors in parameterization, position, and temperature, and the possibility set operating parameters – the number of revolutions, steps per revolution, rotation direction, and a preset. The encoders are multi-turn with 29-bit resolution (8192 positions per revolution for 65536 revolutions). Three mechanical versions are available, with housing size 58 mm and solid shaft: MEM540B and MEM520B with round flange, and MEM620B with square flange. The electrical connection is by M12 connector. The stout aluminum housing guarantees a high protection degree, allowing the use of the encoders even in harsh industrial environments. TECHNICAL SPECIFICATIONS Interface: IO-Link Supply 10/30Vdc 2 W Steps/revolution: 8192/13 bit Revolutions no. (multi-turn): 65536/16 bit Data memory > 30 years Round flange or hollow shaft versions available Aluminium housing Protection degree: IP65
