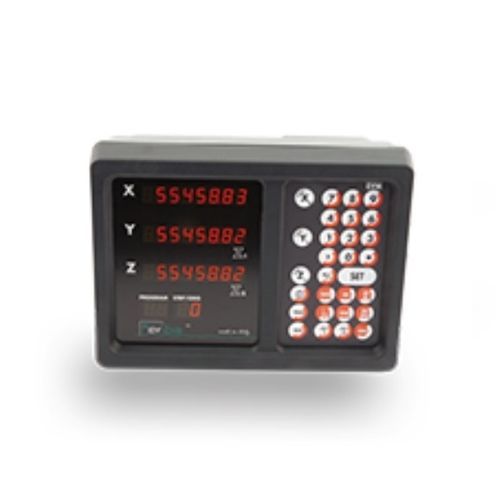

Position indicator EVTL3

digitalpanel-mountfor machine tools

Risolution: 1 - 5 - 10 micron Axes: X - Z1 - Z2 DRO for lathes, customizable. The EV series is a line of displays that suits the various needs of the customers. This model has been designed for the lathe; it provides the user with all the useful features to simplify the operations. This model, unlike other similar models, has three displays that allow it to display, in a separate way, the three axes X, Z1, Z2 or add together Z1 + Z2, and it is also capable of leading the operator in the angular positioning of the tool post turret thanks to a simple dedicated function. As option, it is possible to obtain the control signal to operate at a constant cutting speed. •Work piece zero •mm/inch conversion •Absolute/incremental conversion •Memory buffer •Ref memory •Linear error compensation •Z1 + Z2 axes summation •Coordinattes entry •Cone measurement •Axis zeroing •Radium/diameter conversion •9 storage tools •Weight: 3,0 Kg •Power supply: 115 + 230 Vac; 50-60 Hz; 30 VA OPTIONAL •Constant cutting speed control of the tools •Output at zero •Output near zero
