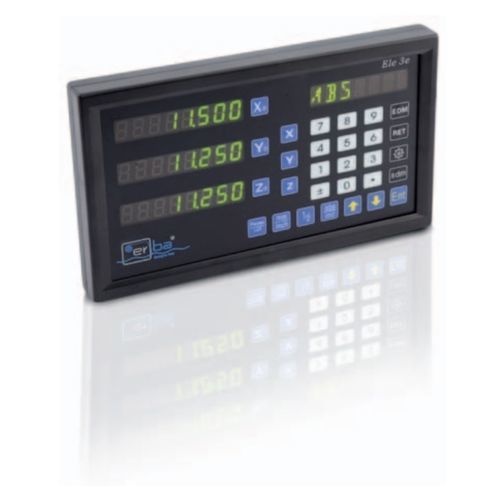

Position indicator Ele 3E

digitalpanel-mountfor machine tools

Risolution: 0.5 - 1 - 2 - 5 - 10 micron Axes: X - Y - Z Designed for visualizing plunge electrical discharge machines on the 3 axes. A special conceived software makes this device particularly functional because it allows to visualize each downward movement of the electrode and it stops when reaching the right coordinate. The programming is clear and simple and pressing one key, the device becomes a complete readout or a proper controller of the electrode descent. It features all functions as Leonardo model and of electrical discharge machining, with a proper relay output controlling electrode progress and stop. •Work piece zero •mm/inch conversion •Absolute/incremental conversion •Memory buffer •Ref memory •Memory for 199 origins •Linear error compensation •Coordinattes entry •Drilling on diameter (flange) •Drilling on diagonal •Centering •Control descent electrode functions •Weight: 2,5 Kg •Power supply: 115 + 230 Vac; 50-60 Hz; 30 VA
