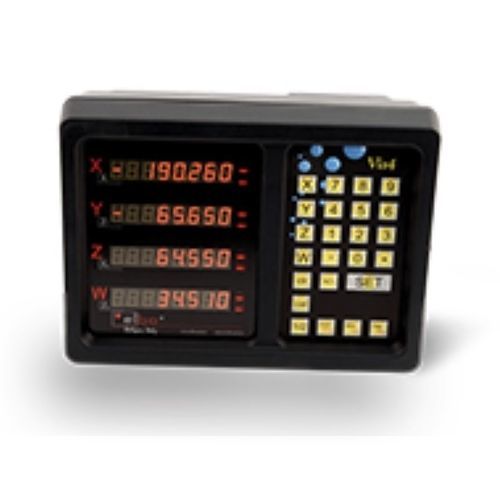

Position indicator VIS4

digitalpanel-mountfor milling machines

Risolution: 1 - 5 - 10 micron Axes: X - Y - Z - W Specially designed for the simultaneous management and visualizing of 4 axes on the machine tools. Specially suitable for the installation on Boring (X, Y, Z, W or B) Lathes and Milling machines. In order to improve the operativity, it is possible to visualize the sum of coherent axis (Z+W). RS232 output, for Data Transmissions, and Reached Zero Output makes this kind of Digital Read Out as an optimal tool for the automatations that aims for the reduction of the operating costs. •Work piece zero •mm/inch conversion •Absolute/incremental conversion •Memory buffer •Ref memory •Linear error compensation •Coherent sum axes (X1+X2 and Z1+Z2) •Coordinattes entry •Axis zeroing •Radium/diameter conversion •Weight: 3,0 Kg •Power supply: 110 ÷ 220 Vac; 50-60 Hz; 30 VA
