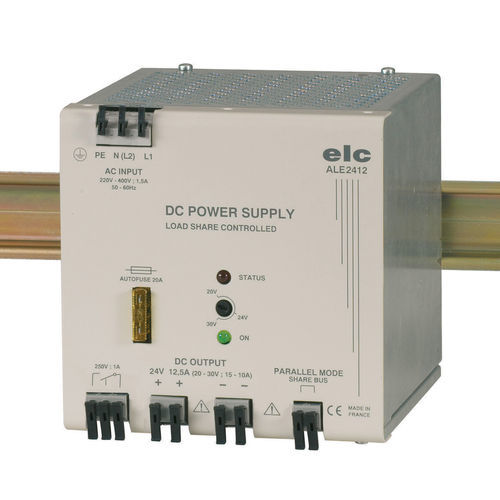

DIN rail power supply ALE2412

DCsingle-outputstabilized

Floating outputs on dual spring terminal blocks with levers for 2,5 mm² (AWG 12) wire. • Output voltage : adjustable from 20 to 30 V. • Regulation : < 10 mV for a load variation from 0 to 100%. < 5 mV for a line variation from 198 to 440 V. • Ripple : < 3 mV rms including : < 8 mV peak to peak of the signal at 100 kHz < 5 mV peak to peak of the signal at 100 Hz < 40 mV peak to peak of switching spikes • Internal resistance : < 1 m Ω • Hold-up time : 25 ms at half load and 12 ms at full load (198 V line input). • Indicator : green power-on LED indicator. overheat or overvoltage red LED indicator. • Information Relay : Invert contact, 250 VAC (30 VDC) 1 A. Current • Max I : 15,5 A in short circuit condition. 15 A at 20 V, 12,5 A at 24 V, 10 A at 30 V. Power • Max output power : 300 W from 20 to 30 V. Protections • Against short circuits by current limit. • Against primary circuit overcurrent, by internal fuse. • Against output overload by voltage limiting to 33 V. • Against current reverse power surges on the output, by fuse. Other specifications • Safety : Complies with EN 61010-1, EN61010-2-201 and EN 62368-1. • EMC : Complies with EN 61000-6-2 and EN 61000-6-4. • Insulation Class : I. • Overvoltage Category : II ; Pollution Degree : 2. • Installation altitude : < 2000 m. • Protection level : IP 30. • Input voltage : 220-400 VAC (198 to 440 Volts), 50-60 Hz. • Mains input : Dual spring terminal blocks for 1,5 mm² (AWG 16) wire. • Power consumption : 360 W max. • Power factor : 0,99 (built with PFC). • Dielectric strength : 4000 VAC between input and output. 2500 VAC between input to chassis.
