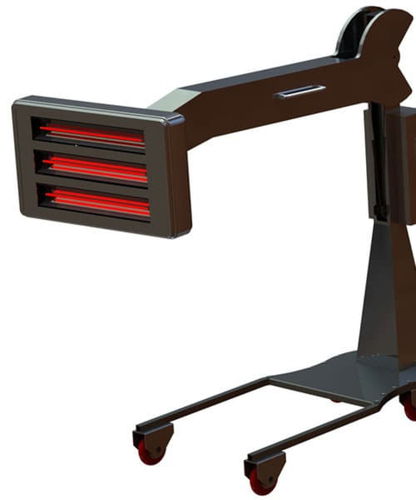

Infrared dryer O Type

for paint

ELCON IR auto paint dryers are the next generation technology used in all local paint drying applications in the automotive industry. ince there is no air circulation, it does not cause any dust on the surface to be dried and helps the paint to be applied as close to the original. At the same time, it provides energy saving up to 30% as it provides heating with light. With its mobile structure, the installation cost is also very low. A feature that distinguishes the units in which short wave (0.7-1.2 µm) technology is used from other methods is that it performs the drying process very quickly and homogeneously. Time and energy savings that come with these features are other advantages. Infrared wavelength is also a very important factor in the drying process: - It performs the process of drying only the paint on the material without changing the structure of the material or laminating it to the material without changing the structure of the paint. - In the short wavelength range, the selected wavelength, depending on the applied paint thickness and type, affects both the drying quality and the time. - The commissioning time is 1-2 seconds. Being ready for use from the moment it is energized, it also saves up to 30% of time and energy. Elcon IR Auto Paint Drying Unit Technical Specifications - 3 x Short Wave (0.7-1.2 µm) Infrared units - Single Phase, 6 kW total power value - Electronic power and time control - Ease of parameter control with the help of LCD screen - Mobility with its mobile structure - Positioning at desired height - Infrared unit position adjustment with the help of axial movements - Homogeneous heat transfer with special reflector structure
