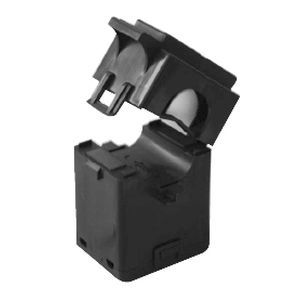

Transformer current sensor PFAE000-05 ECT CTS 24-200

split-coremonitoring

<b>Description</b><br>Split-core current transformer designed for accurate current measurement and power quality monitoring when used with Electrex ECT family instruments. Provides measurements up to 200 A with class 0.5S accuracy. Plastic housing with a snap-fit, screwless closure and a 24 mm aperture. Includes protection against opening of the secondary circuit.<br><br><b>Compatibility</b><br><ul><li>Designed for exclusive use with Electrex ECT series instruments</li><li>Examples: Femto D4 ECT, Atto D4 ECT, Femto ECT net, Libra ECT, Lyra ECT net (up to 200 A)</li></ul><br><br><b>Applications</b><br><ul><li>Current measurement in industrial and commercial installations</li><li>Power quality monitoring and analysis</li><li>Retrofit and temporary measurement where split-core installation is required</li><li>Energy audits and load analysis</li></ul><br><br><b>Main features</b><br><ul><li>Type: split-core current transformer (CT)</li><li>Maximum measuring range: up to 200 A</li><li>Accuracy class: 0.5S</li><li>Window diameter: 24 mm</li><li>Housing: plastic</li><li>Mounting: snap-fit, screwless closure</li><li>Safety: protection on secondary circuit opening</li><li>Suitable for power quality measurements</li></ul><br><br><b>Technical specifications</b><br><ul><li>Model: PFAE000-05 ECT CTS</li><li>CT type: split-core</li><li>Window diameter: 24 mm</li><li>Nominal current range: up to 200 A</li><li>Accuracy class: 0.5S</li><li>Housing material: plastic</li><li>Mounting method: snap-fit (no screws)</li><li>Secondary circuit protection: yes</li></ul>
