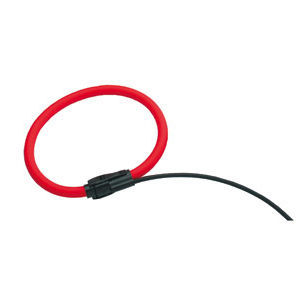

Rogowski coil current sensor PFCF024 FCTS 280-4000

split-coreflexiblevoltage output

Product overview Flexible split core current transformer (Rogowski type) with mV output, designed for exclusive use with Electrex product families version F (examples: Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6 and Exa 96). Internal diameter: 280 mm. Configurable full-scale options: 250 A, 500 A, 1000 A, 2000 A, 4000 A. Connection cable length: 2 m. Accuracy: ±1%.

Compatibility

• Exclusive compatibility with Electrex product families version F: Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6, Exa 96

Datasheet

• FCTS FLEXIBLE SPLIT CT — data sheet available (PDF)

Characteristics / Technical specifications

• Type: Flexible split core current transformer (Rogowski-type)
• Output: mV output (for connection to compatible Electrex instruments)
• Internal diameter: 280 mm
• Configurable full-scale options: 250 A; 500 A; 1000 A; 2000 A; 4000 A
• Connection: 2 m cable
• Accuracy: ±1%
• Use case: accessory for power and energy analysers
