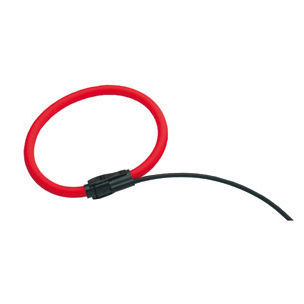

Rogowski coil current sensor PFCF023 FCTS 200-2000

flexiblevoltage outputhigh-accuracy

Description
Flexible split‑core (Rogowski‑type) current transformer with millivolt (mV) output. Designed for clamp‑on installation around conductors up to 200 mm internal diameter. Connection cable length: 2 m. Configurable full‑scale options: 250 A / 500 A / 1,000 A / 2,000 A / 4,000 A. Accuracy: ±1%. Datasheet available for model FCTS (PDF).

Compatibility

• Exclusive compatibility with Electrex instrument families version F
• Example models: Femto D4 F
• Exa 96 F
• Kilo F
• Giga F PQ Box
• Exa F D6 and Exa F 96

Datasheet
Datasheet for the FCTS flexible split‑core CT is available (PDF). Refer to the product page for download and ordering codes.

Technical characteristics

• Type: flexible split‑core current transformer (Rogowski‑type)
• Output: millivolt (mV)
• Compatibility: Electrex instrument families version F (e.g. Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6, Exa F 96)
• Internal aperture (diameter): 200 mm
• Configurable full scale:
  • 250 A
  • 500 A
  • 1,000 A
  • 2,000 A
  • 4,000 A
• Connection cable length: 2 m
• Accuracy: ±1%
