Transformer current sensor PFCF021 FCTS 070-500clampsplit-corehigh-accuracy
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Mounting
- clamp
- Other characteristics
- split-core, high-accuracy, flexible
- Output
- voltage output
- Primary current
Min.: 250 A
Max.: 4,000 A
Description
Description

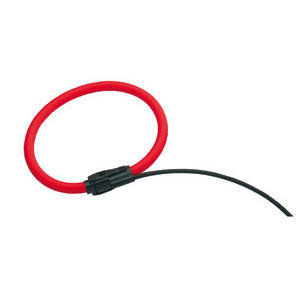

Openable flexible split-core current transformer with mV output. Compatible with Electrex F series instruments, e.g. Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6 and Exa 96 F. Internal aperture diameter 70 mm. Connection cable approximately 2 metres. Configurable full scale: 250 A, 500 A, 1,000 A, 2,000 A or 4,000 A. Accuracy ±1%.
Documentation
Features / technical specifications
Openable flexible split-core current transformer with mV output. Compatible with Electrex F series instruments, e.g. Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6 and Exa 96 F. Internal aperture diameter 70 mm. Connection cable approximately 2 metres. Configurable full scale: 250 A, 500 A, 1,000 A, 2,000 A or 4,000 A. Accuracy ±1%.
Documentation
- Product sheet FCTS FLEXIBLE SPLIT CT (Type: pdf)
Features / technical specifications
- Type: openable flexible split-core current transformer (split core)
- Output: in mV
- Compatibility: Electrex F series instruments (e.g. Femto D4 F, Exa 96 F, Kilo F, Giga F PQ Box, Exa F D6, Exa 96 F)
- Internal aperture diameter: 70 mm
- Connection cable length: approximately 2 metres
- Full scale configurable: 250 A, 500 A, 1,000 A, 2,000 A, 4,000 A
- Accuracy: ±1%
