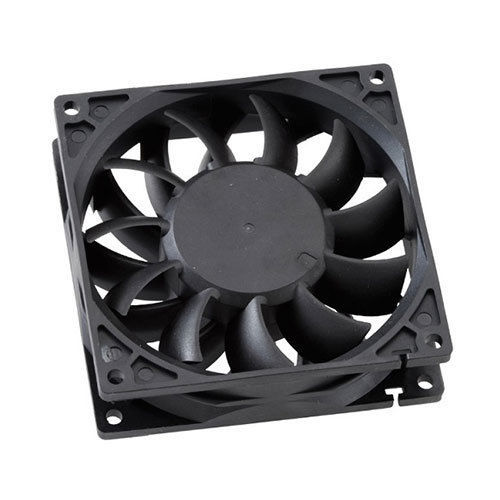

DC fan ED series

high-performancelow-noiseaxial

Overview
Brushless DC axial fans for DC voltage, offered in a wide range of designs and performances. This section covers sizes smaller than 172 mm with plastic frame and plastic impeller, intended for cooling electronic equipment requiring compact, variable-performance fans.

Series Options

• P Series for quiet operations (Brushless DC fan, Plastic Impeller)
• S Series for high performance (Brushless DC fan, Plastic Impeller)

Quality & Manufacturing
Every model undergoes rigorous testing to minimize noise while maintaining airflow and pressure performance. Highly automated precision assembly ensures consistent quality and repeatability.

Specification (table)
Header: Spec. | Size (mm) / Size (inch) | P Series (Brushless DC fan, Plastic Impeller) | S Series (Brushless DC fan, Plastic Impeller)

• 172 x 150 x 51 | 6.70 x 5.90 x 2.00 | P: ED15051
• 140 x 140 x 38 | 5.51 x 5.51 x 1.50 | S: ED1438 / ED1438 Mark II
• 140 x 140 x 25 | 5.51 x 5.51 x 0.98 | P: ED14025 Model A / ED14025 Model E
• 135 x 135 x 25 | 5.31 x 5.31 x 0.98 | P: ED13525 Model A
• 120 x 120 x 38 | 4.70 x 4.70 x 1.50 | P: ED12038 Model C | S: ED1238
• 120 x 120 x 32 | 4.70 x 4.70 x 1.25 | P: ED12032 Model C | S: ED1232
• 120 x 120 x 25 | 4.70 x 4.70 x 0.98 | P: ED12025 CASE / ED12025 Model D / ED12025 Model X
• 92 x 92 x 38 | 3.62 x 3.62 x 1.50 | P: ED09238 Model B | S: ED9238 / ED9238 Mark II
• 92 x 92 x 32 | 3.62 x 3.62 x 1.25 | P: ED09232
• 92 x 92 x 25 | 3.62 x 3.62 x 0.98 | P: ED09225 CASE / ED09225 Model O / ED09225 Model Q | S: ED9225
• 92 x 92 x 15 | 3.62 x 3.62 x 0.6 | P: ED09215 Model A / ED09215 Model B / ED09215 Model J
• 80 x 80 x 38 | 3.15 x 3.15 x 1.5 | P: ED08038 Model D / ED08038 Model E | S: ED8038
• 80 x 80 x 32 | 3.15 x 3.15 x 1.25 | S: ED8032
• 80 x 80 x 25 | 3.15 x 3.15 x 1.00 | P: ED08025 CASE / ED08025 Model E / ED08025 Model J | S: ED8025
• 80 x 80 x 20 | 3.15 x 3.15 x 0.8 | P: ED08020 | S: ED8020
• 80 x 80 x 15 | 3.15 x 3.15 x 0.6 | P: ED08015 Model I | S: ED8015
• 80 x 80 x 10 | 3.15 x 3.15 x 0.39 | P: ED08010 Model A / ED08010 Model Y
• 70 x 70 x 25 | 2.75 x 2.75 x 1.00 | P: ED07025 | S: ED7025
• 70 x 70 x 20 | 2.75 x 2.75 x 0.78 | P: ED07020 | S: ED7020
• 70 x 70 x 15 | 2.75 x 2.75 x 0.59 | P: ED07015 Model C | S: ED7015
• 70 x 70 x 10 | 2.75 x 2.75 x 0.39 | P: ED07010 Model A / ED07010 Model T
• 60 x 60 x 38 | 2.36 x 2.36 x 1.50 | P: ED06038 Model A / ED06038 Model B | S: ED6038
• 60 x 60 x 25 | 2.4 x 2.4 x 1.00 | P: ED06025 Model C / ED06025 Model D | S: ED6025
• 60 x 60 x 20 | 2.4 x 2.4 x 0.8 | P: ED06020 | S: ED6020
• 60 x 60 x 15 | 2.4 x 2.4 x 0.6 | P: ED06015 Model C | S: ED6015
• 60 x 60 x 10 | 2.4 x 2.4 x 0.39 | P: ED06010
• 50 x 50 x 20 | 1.9 x 1.9 x 0.78 | P: ED05020 | S: ED5020
• 50 x 50 x 15 | 1.9 x 1.9 x 0.6 | P: ED05015 Model D | S: ED5015
• 50 x 50 x 10 | 1.9 x 1.9 x 0.4 | P: ED05010 Model A / ED05010 Model C | S: ED5010
• 40 x 40 x 56 | 1.6 x 1.6 x 1.1 | P: ED04056 Model A / ED04056 Model B | S: ED4056
• 40 x 40 x 28 | 1.6 x 1.6 x 2.2 | P: ED04028 Model C / ED04028 Model D | S: ED4028 / ED4028 Mark II / ED4028 Mark III
• 40 x 40 x 20 | 1.6 x 1.6 x 0.78 | P: ED04020 Model D / ED04020 Model H / ED04020 Model P | S: ED4020
• 40 x 40 x 15 | 1.6 x 1.6 x 0.6 | P: ED04015 | S: ED4015
• 40 x 40 x 10 | 1.6 x 1.6 x 0.4 | P: ED04010 Model E | S: ED4010
• 40 x 40 x 07 | 1.57 x 1.57 x 0.27 | P: ED04007
• 38 x 38 x 28 | 1.5 x 1.5 x 1.1 | P: ED03828 | S: ED3828
• 38 x 38 x 20 | 1.5 x 1.5 x 0.78 | P: ED03820 | S: ED3820
• 35 x 35 x 10 | 1.37 x 1.37 x 0.4 | P: ED03510 | S: ED3510
• 30 x 30 x 10 | 1.18 x 1.18 x 0.4 | P: ED03010 / ED03010 Model B | S: ED3010
• 25 x 25 x 10 | 1 x 1 x 0.4 | P: ED02510 Model B | S: ED2510
• 25 x 25 x 06 | 1 x 1 x 0.23 | P: ED02506
• 20 x 20 x 10 | 0.79 x 0.79 x 0.4 | P: ED02010

Notes

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.
• Optional Signal Output / Speed Control / IP Rating available on request.

Features / technical specifications

• Type: Brushless DC axial fans (mechanical revolving blade)
• Frame / Impeller: Plastic
• Applicable sizes: Wide range from 20 x 20 mm up to 172 x 150 mm (all sizes listed above)
• Series: ED series (available in P Series for low noise and S Series for high performance)
• Applications: Cooling for electronic equipment requiring compact, variable-performance fans
• Quality: Rigorous noise/airflow/pressure testing; automated precision assembly
• Options: Signal output, speed control, and IP ratings available upon request
