DC fan ECD series

high-pressurelow-noiseduct

Overview

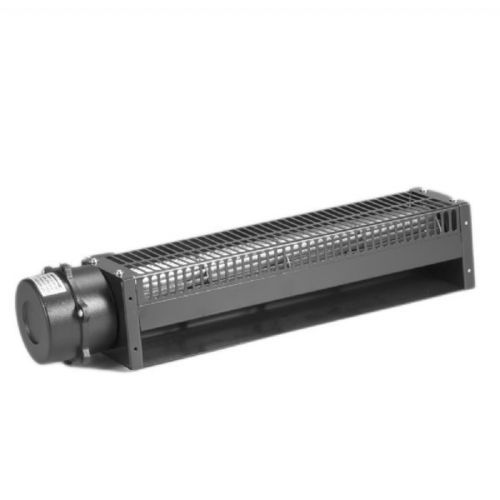

Compact DC cross-flow (tangential) fans providing a slim footprint, low noise and a high pressure coefficient, intended for compact industrial assemblies, HVAC ducts, electronic enclosures and appliances.

Specification

• ECD9031 | 310 x 413 x 137 mm (12.20 x 16.26 x 5.39 in) | Max airflow 9.8 ~ 5.04 m³/min (350 ~ 180 CFM) | Roller Ø 90 x 31 mm (Ø 3.54 x 1.22 in)
• ECD6042 | 420 x 499 x 90 mm (16.54 x 19.65 x 3.54 in) | Max airflow 8.344 ~ 4.284 m³/min (298 ~ 153 CFM) | Roller Ø 60 x 42 mm (Ø 2.36 x 1.65 in)
• ECD6036 | 360 x 439 x 90 mm (14.17 x 17.28 x 3.54 in) | Max airflow 7.7 ~ 3.36 m³/min (275 ~ 120 CFM) | Roller Ø 60 x 36 mm (Ø 2.36 x 1.42 in)
• ECD6030 | 300 x 368 x 90 mm (11.81 x 14.49 x 3.54 in) | Max airflow 5.32 ~ 2.856 m³/min (190 ~ 102 CFM) | Roller Ø 60 x 30 mm (Ø 2.36 x 1.18 in)
• ECD6024 | 240 x 307 x 90 mm | Max airflow 3.64 ~ 2.184 m³/min (130 ~ 78 CFM) | Roller Ø 60 x 24 mm (Ø 2.36 x 0.94 in)
• ECD6018 | 180 x 246 x 90 mm | Max airflow 2.94 ~ 1.68 m³/min (105 ~ 60 CFM) | Roller Ø 60 x 18 mm (Ø 2.36 x 0.71 in)
• ECD6012 | 120 x 185 x 90 mm | Max airflow 2.352 ~ 1.428 m³/min (84 ~ 51 CFM) | Roller Ø 60 x 12 mm (Ø 2.36 x 0.47 in)
• ECD5029 | 290 x 360 x 70 mm (11.42 x 14.17 x 2.76 in) | Max airflow 2.996 ~ 1.68 m³/min (107 ~ 60 CFM) | Roller Ø 50 x 29 mm (Ø 1.97 x 1.14 in)
• ECD5019 | 190 x 260 x 70 mm (7.48 x 10.24 x 2.76 in) | Max airflow 1.96 ~ 1.4 m³/min (70 ~ 50 CFM) | Roller Ø 50 x 19 mm (Ø 1.97 x 0.75 in)
• ECD4019 | 190 x 260 x 60 mm (7.48 x 10.24 x 2.36 in) | Max airflow 2.24 ~ 1.68 m³/min (80 ~ 60 CFM) | Roller Ø 40 x 19 mm (Ø 1.57 x 0.75 in)

• We reserve the right to change the data without further notice.
• Data performance subjected to ±10% tolerance.

Technical specifications

• Product type: DC cross-flow (tangential) fans engineered for compact installation, quiet operation and a high pressure coefficient.
• Series / models available: ECD9031, ECD6042, ECD6036, ECD6030, ECD6024, ECD6018, ECD6012, ECD5029, ECD5019, ECD4019.
• Dimensions: listed per model (mm and inches where applicable).
• Maximum airflow: ranges provided per model (m³/min and CFM).
• Roller sizes vary by model (Ø mm / Ø inch).
• Performance tolerance: data performance subjected to ±10%.
