DC fan ED series

high-performancehigh-flowcentrifugal

Short description

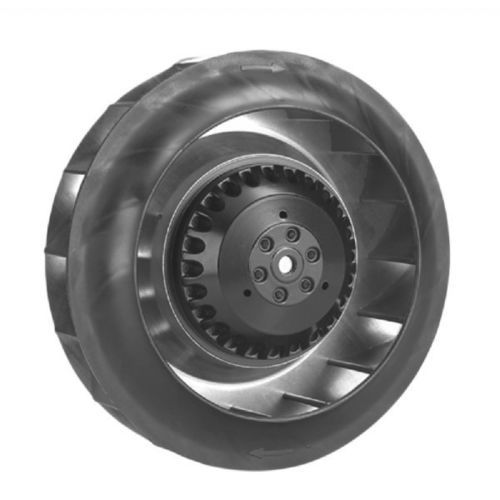

Designed for engineered air moving applications where high reliability, high airflow, high static pressures, and limited space are primary considerations. The ED series comprises motorized centrifugal fans (motorized impellers) with backward-curved impellers, covering sizes from Ø100 x 25 mm to Ø250 x 110 mm.

Specification
Spec. | Model No. | Size (mm) / Size (Inch) | Max Airflow (m³/min) / Max Airflow (CFM) | Remarks
ED25011 — Ø 250 x 110 / Ø 9.8 x 4.3 — 26.1 m³/min / 920 CFM — Backward Curved Impeller
ED22599 — Ø 225 x 99 / Ø 8.8 x 3.89 — 23.6 m³/min / 835 CFM — Backward Curved Impeller
ED22171 — Ø 221.5 x 71 / Ø 8.7 x 2.7 — 17.6 m³/min / 621 CFM — Backward Curved Impeller
ED19069 — Ø 190 x 69 / Ø 7.5 x 2.7 — 12.2 m³/min / 432 CFM — Backward Curved Impeller
ED17569 — Ø 175 x 69 / Ø 6.9 x 2.7 — 12.4 m³/min / 437 CFM — Backward Curved Impeller
ED17567 — Ø 175 x 67 / Ø 6.9 x 2.6 — 11.2 m³/min / 395 CFM — Backward Curved Impeller
ED13391 — Ø 133 x 91 / Ø 5.2 x 3.5 — 9.2 m³/min / 326 CFM — Backward Curved Impeller
ED10025 — Ø 100 x 25 / Ø 3.9 x 1.0 — 1.92 m³/min / 35 CFM — Backward Curved Impeller

Notes

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.

Technical specifications

• Product family: DC centrifugal fans / motorized impellers
• Impeller type: Backward curved impeller (listed for all models)
• Available models and key specs:
  • ED25011 — Size Ø250 x 110 mm (Ø9.8 x 4.3 in); Max airflow 26.1 m³/min (920 CFM)
  • ED22599 — Size Ø225 x 99 mm (Ø8.8 x 3.89 in); Max airflow 23.6 m³/min (835 CFM)
  • ED22171 — Size Ø221.5 x 71 mm (Ø8.7 x 2.7 in); Max airflow 17.6 m³/min (621 CFM)
  • ED19069 — Size Ø190 x 69 mm (Ø7.5 x 2.7 in); Max airflow 12.2 m³/min (432 CFM)
  • ED17569 — Size Ø175 x 69 mm (Ø6.9 x 2.7 in); Max airflow 12.4 m³/min (437 CFM)
  • ED17567 — Size Ø175 x 67 mm (Ø6.9 x 2.6 in); Max airflow 11.2 m³/min (395 CFM)
  • ED13391 — Size Ø133 x 91 mm (Ø5.2 x 3.5 in); Max airflow 9.2 m³/min (326 CFM)
  • ED10025 — Size Ø100 x 25 mm (Ø3.9 x 1.0 in); Max airflow 1.92 m³/min (35 CFM)
• Typical application: engineered air moving where high airflow and high static pressures are required in limited space
