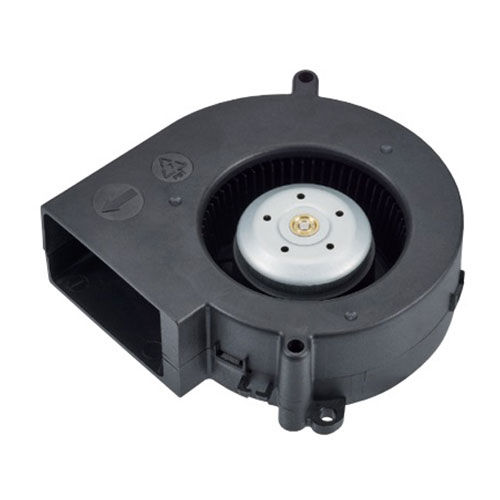

Centrifugal fan EBD series

coolingventilationDC

Product overview
DC-powered blower fans from the EBD series. Airflow is directed perpendicular to the fan axis to deliver high volumetric flow rates for cooling and ventilation in compact equipment and industrial installations. Multiple sizes and configurations available to suit OEM and system integration needs.

Available models and key performance

• EBD12032 — 120 x 120 x 32 mm — 0.891 m3/min (31.47 CFM)
• EBD11020 — 110 x 110 x 20 mm — 0.792 m3/min (27.98 CFM)
• EBD09733 Model A — 97 x 97 x 33 mm — 0.956 m3/min (33.77 CFM)
• EBD09733 Model B — 97 x 97 x 33 mm — 1.572 m3/min (55.53 CFM)
• EBD09512 — 95 x 95 x 12 mm — 0.403 m3/min (14.24 CFM)
• EBD08020 — 80 x 80 x 20 mm — 0.668 m3/min (23.61 CFM)
• EBD08008 — 80 x 80 x 8 mm — 0.228 m3/min (8.07 CFM)
• EBD07530 — 75 x 75 x 30 mm — 0.330 m3/min (11.65 CFM)
• EBD07510 — 70 x 70 x 10 mm — 0.250 m3/min (8.84 CFM)
• EBD07508 — 75 x 75 x 8 mm — 0.593 m3/min (20.94 CFM)
• EBD07016 — 70 x 70 x 16 mm — 0.333 m3/min (11.78 CFM)
• EBD06907 — 69 x 69 x 7 mm — 0.208 m3/min (7.35 CFM)
• EBD06015 — 60 x 60 x 15 mm — 0.281 m3/min (9.94 CFM)
• EBD05508 — 55 x 55 x 8 mm — 0.096 m3/min (3.40 CFM)
• EBD05020 Model B — 50 x 50 x 20 mm — 0.158 m3/min (5.57 CFM)
• EBD05015 Model B — 50 x 50 x 15 mm — 0.150 m3/min (5.16 CFM)
• EBD03510 — 35 x 35 x 10 mm — 0.094 m3/min (3.30 CFM)
• EBD03010 — 30 x 30 x 10 mm — 0.052 m3/min (1.84 CFM)

Notes

• We reserve the right to change the data without further notice.
• Data performance subject to ±10% tolerance.
• Optional: signal output, speed control, IP rating available on request.

Technical specifications

• Series: EBD
• Voltage: DC
• Airflow direction: perpendicular to fan axis
• Primary use: provide high volumetric airflow for cooling and ventilation
• Optional features: signal output, speed control, IP ratings on request
