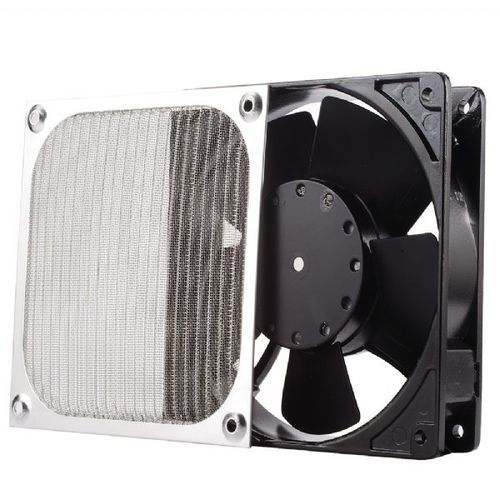

Air filter EMF series

particulatedustwire mesh

Description
Metal fan filters designed to provide maximum airflow while effectively capturing dust and particles. 30 PPI mesh filters are used across the range.

Specification table
25mm (1.0") | ED25XX Series |
40mm (1.57") | ED40XX Series |
45mm (1.77") | ED45XX Series |
50mm (2.05") | ED50XX Series |
60mm (2.36") | EA60XX Series / ED60XX Series | EMF60S-30N
70mm (2.37") | ED70XX Series |
80mm (3.15") | EA80XX Series / EC80XX Series / ED80XX Series | EMF80S-30N
92mm (3.62") | EA92XX Series / EC92XX Series / ED92XX Series | EMF92S-30N
120mm (4.7") | EA12XX Series / EC12XX Series / ED12XX Series | EMF120S-30N
127mm (5.0") | EA1338 Series / ED1338 Series |
172mm (6.7") | EA15XX / EA17XX Series / ED15XX / ED17XX Series | EMF172S-30N
180mm (7.0") | EA18XX Series / ED18XX Series |
205mm (8.85") | ED2072 Series |
225mm (8.85") | EA2280 Series |
254mm (10.0") | EA25XX Series / ED2589 Series |
280mm (11.0") | EA2880 Series |

Technical characteristics / specifications

• Filter type: Metal fan filter
• Mesh density: 30 PPI
• Main benefit: Maximum airflow with effective filtering
• Compatible fan sizes: 25mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 127mm, 172mm, 180mm, 205mm, 225mm, 254mm, 280mm
• Compatible fan series: EA, EC and ED series (various sub-series listed in specification table)
• Available filter model references shown on page: EMF60S-30N, EMF80S-30N, EMF92S-30N, EMF120S-30N, EMF172S-30N
• Material: Metal (as per product name)
