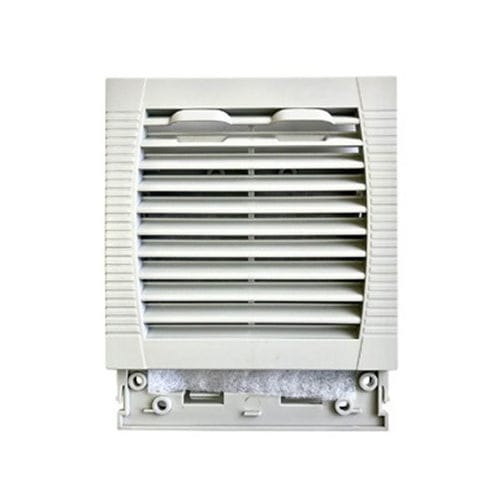

Air filter ELFG series

waterdustpanel

Description
Plastic louvered fan filter kits of the ELFG series are louvered guards designed to prevent ingress of dust, dirt and moisture into enclosures and fan assemblies. Kits are supplied for common fan diameters and available in Snap-On, Hinged and Slide mounting types.

Key features

• Plastic louvered construction to block dust, dirt and moisture
• Mounting types: Snap-On, Hinged and Slide (availability per product)
• Compatible fan sizes: 80 mm, 92 mm, 120 mm, 172 mm, 225 mm and 280 mm
• Part number series: ELFG-80S, ELFG-92S, ELFG-120S / ELFG-120H, ELFG-172S / ELFG-172H, ELFG-225S / ELFG-225H, ELFG-280S / ELFG-280H
• Designed as fan accessory / filter kit for ventilation and cooling of electrical enclosures

Available sizes and part numbers

• 80 mm (3.15 in) — ELFG-80S (Snap-On)
• 92 mm (3.62 in) — ELFG-92S (Snap-On)
• 120 mm (4.72 in) — ELFG-120S / ELFG-120H (Snap-On / Hinged)
• 172 mm (6.77 in) — ELFG-172S / ELFG-172H (Snap-On / Hinged)
• 225 mm (8.85 in) — ELFG-225S / ELFG-225H (Snap-On / Hinged)
• 280 mm (11.02 in) — ELFG-280S / ELFG-280H (Snap-On / Hinged)

Technical specifications

• Material: plastic louvered guard (refer to product page for exact polymer)
• Mounting options: Snap-On, Hinged, Slide
• Fan compatibility range: 80–280 mm diameters
• Typical use: fan accessory for enclosure ventilation, dust and moisture protection
