LED display NDA 100/3-2 THS RG L20 230AC LAN

color7-segmenttemperature measurement

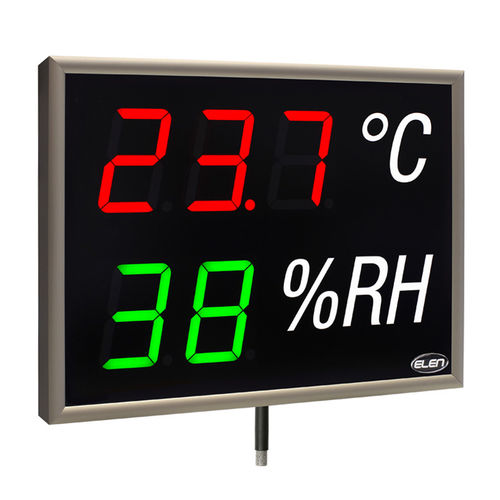

The NDA 100/3-2 THS RG L20 230AC LAN is an electronic monitoring device which measures and displays air temperature and humidity on a large format. It is suitable for use in indoor environment (public institutions, banks, bus and railway stations, airports, schools, offices, hotels, restaurants, etc.). Its enclosure consists of aesthetic anodized aluminum frame, non-glare front cover glass and steel back panel. Excellent readability is ensured by super-bright 7-segment LED modules with a wide viewing angle. The color of LED digits can be set to red, green, or yellow by user. Temperature and humidity sensor probe is detachable and connects into display frame from the bottom side. Display is equiped with LAN Ethernet TCP/IP interface for connecting to PC and data logging of measured values. Power supply cable is attached from the back side. Description Height of characters - 100 mm Type of displaying elements - Temperature – Red/Green/Yellow Humidity – Red/Green/Yellow Readability range - 40 m Frame colour - Platinum grey Inputs / Outputs - 1x USB type B – connector for configuration settings 1x LAN – Ethernet TCP/IP Frame type - Aesthetic anodized aluminium / Non-glare, grey colour tinted PMMA glass Class of protection - IP 20, indoor use only Power supply - 100-240V~, power supply cable with 2-pole EU plug, length 2 m Power consumption - 13 W Max. Weight - 4.5 kg
