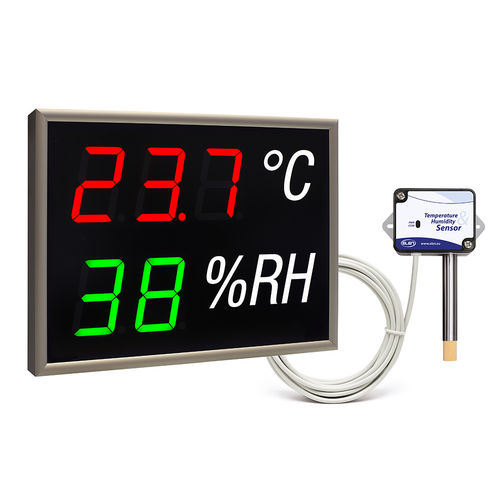

LED display NDA 100/3-2 TH RG L20 230AC

color7-segmenttemperature measurement

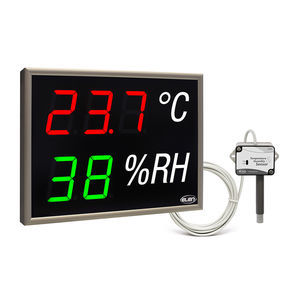

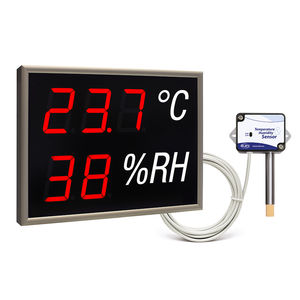

The NDA 100/3-2 TH RG L20 230AC RS485 is an electronic monitoring device which displays air temperature and humidity on a large format. It is suitable for use in indoor environment (public institutions, banks, bus and railway stations, airports, schools, offices, hotels, restaurants, etc.). Its enclosure consists of aesthetic anodized aluminum frame, non-glare front cover glass and steel back panel. Excellent readability is ensured by super-bright 7-segment LED modules with a wide viewing angle. External temperature and humidity sensor connects to display with cable via serial RS485 inerface. Display is equiped with RS485 interface for connecting to PC and data logging of measured values. Power supply cable is attached from the back side. Description LED type - Super bright 7-segment LED modules, viewing angle 120° Height of characters - 100 mm Type of displaying elements - Temperature – Red/Green/Yellow Humidity – Red/Green/Yellow Readability range - 40 m Frame colour - Matt warm grey Inputs / Outputs - 1x RS485 – external temperature and humidity sensor 1x USB type B – connector for configuration settings 1x RS485 – connector for data logging to PC Frame type - Aesthetic anodized aluminium / Non-glare, grey colour tinted PMMA glass Class of protection - IP 20, indoor use only Power supply - 100-240V~, power supply cable with 2-pole EU plug, length 2 m Power consumption - 13 W Max. Weight - 4.5 kg
