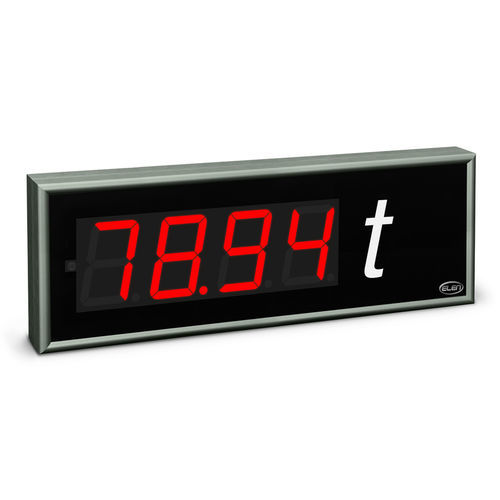

LED display NDU 100/4 R

numeric7-segment4-digit

LED displays of the NDI 100/4 R H65 series are used in demanding industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.). Detailed information ultrabright eliptical LED elements suitable for outdoor applications; viewing angle 105° horizontally, 45° vertically; robust double-cover frame made of zinc-plated steel sheets; powder paint coated black finish; antiglare front cover made of dim 5 mm thick PMMA Perspex glass; vibration impact reduction by placing all internal electronics on flexible rubber silentblock; industrial grade data and power supply connector ensure reliable electrical connection; floated decimal point; wide range of communication protocols – ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request; fixed label for units description as per customer request – °C, Kg, t, g, m/s, ot./min, etc. Description Number format - 8.8.8.8. LED type - ultrabright eliptical LED elements, viewing angle 105/45°, suitable for outdoor light conditions Height of characters - 100 mm Type of displaying elements - red Readability range - 40 m Frame colour - black Frame type - steel frame, zinc plated and powder paint coated Power supply - 230 VAC Power consumption - 9,2 W Weight - 15,0 kg
