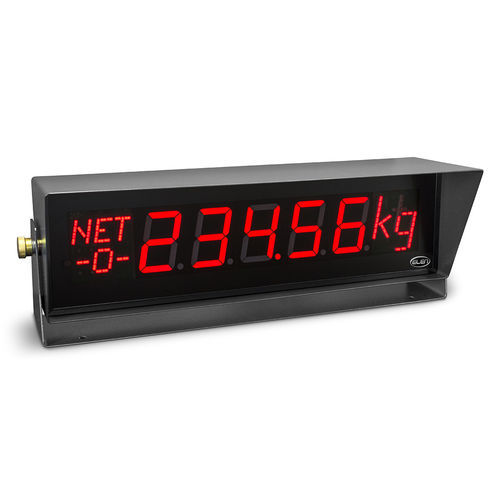

LED display NDI 100/5 W R

alphanumeric7-segment5-digit

Weighing LED displays of the NDI 100/5 W R series are used in demanding industrial conditions and are intended for displaying numerical values of measured weight values. Detailed information: Robust double-cover frame made of zinc-plated steel sheets. Powder paint coated black finish. Antiglare front cover made of dim 5 mm thick PMMA Perspex glass. Vibration impact reduction by placing all internal electronics on flexible rubber silentblock. Industrial grade data and power supply connector ensure reliable electrical connection. Floated decimal point. Wide range of communication protocols - ELEN, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request Special characters (NET, -0-, t, kg, g) made out of superbright red LED bars. Description Number format - 8.8.8.8.8. Special characters - NET, -0-, t, kg, g Height of characters - 100 mm Type of displaying elements - red Readability range - 40 m Frame colour - black Frame type - steel frame, zinc plated and powder paint coated Communication protocol - ELEN, Schenck, Disomat, ... Power supply - 110/230 VAC, 50 Hz Dimensions - 823 x 220 x 313 Weight - 18,8 kg
